LCM-25KN

Mean Well LED driver series LCM-25KN

LED drivers in a plastic case with 25W, a constant current, the KNX/EIB protocol and a KNX push button interface. These devices have a DIL switch for selecting the constant current and are protected against short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. The standby power consumption is less than 0,5W. We offer the type LCM-25KN of this Mean Well series.

  • input voltage: 180 to 295V AC (47 to 63Hz), 220 to 417V DC
  • maximal input inrush current: 20A
  • constant current selectable through DIP switch:
    • 6 to 54V at 350mA IA
    • 6 to 50V at 500mA IA
    • 6 to 42V at 600mA IA
    • 6 to 36V at 700mA IA
    • 6 to 28V at 900mA IA
    • 6 to 24V at 1050mA IA
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +85°C
  • weight: 173g

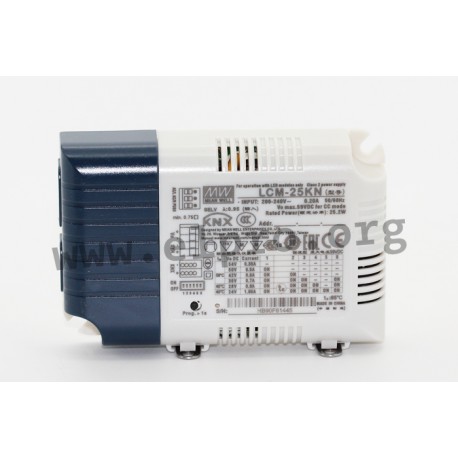

LCM-25KN, Mean Well LED switching power supplies, 25W, KNX protocol, LCM-25KN series

LCM-25KN

123894 LCM-25KN LCM-25KN 4711287461304 Mean Well LED driver series LCM-25KN. LED drivers in a plastic case with 25W, a constant current, the KNX/EIB protocol and a KNX push button interface. These devices have a DIL switch for selecting the constant current and are protected against short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. The standby power consumption is less than 0,5W. We offer the type LCM-25KN of this Mean Well series. input voltage: 180 to 295V AC (47 to 63Hz), 220 to 417V DC maximal input inrush current: 20A constant current selectable through DIP switch: 6 to 54V at 350mA IA 6 to 50V at 500mA IA 6 to 42V at 600mA IA 6 to 36V at 700mA IA 6 to 28V at 900mA IA 6 to 24V at 1050mA IA withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +85°C weight: 173g

Specifications

manufacturer
Manufacturer's name LCM-25KN
GTIN 4711287461304
Efficiency [%] 86
Output power [W] ~25
Ripple & noise [%] 5
Data Sheet

Unit price

38,19 €

Volume discounts

Quantity Unit price
50 + 36,89 €

Stock: 86
Further delivery:
CW 32/2024
