DCW 08B-12

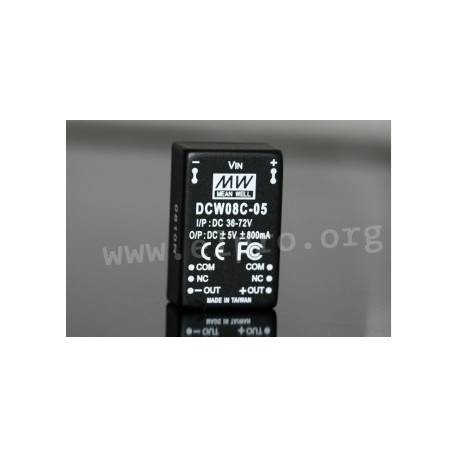

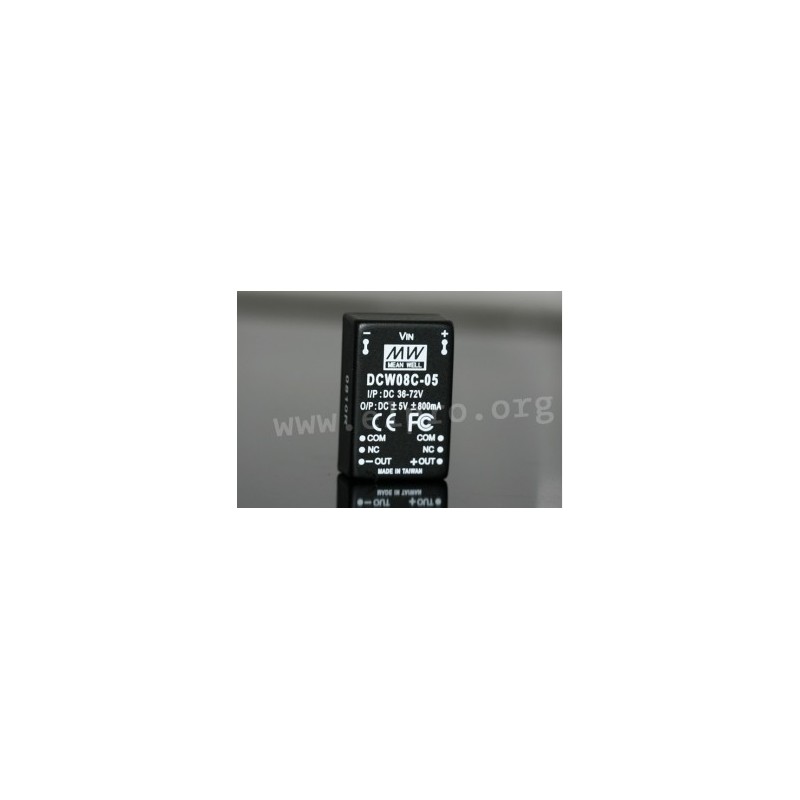

Mean Well DC/DC converter series DCW08

DC/DC converters in a DIL24 housing with 8W, a regulated output voltage, an input voltage ratio of 2:1 and a built-in EMI filter. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B. We offer various types of this Mean Well series.

  • dual output
  • output: 8W
  • overload protection: 110 to 250%
  • withstand voltage: 1000V DC
  • operating temperature: -40 to +71°C
  • weight: 15g
DCW08B-12, Mean Well DC/DC converters, 8W, DIL24 housing, DCW08 series

DCW 08B-12

30483 DCW 08B-12 DCW08B-12 DCW08B-12 Mean Well DC/DC converter series DCW08. DC/DC converters in a DIL24 housing with 8W, a regulated output voltage, an input voltage ratio of 2:1 and a built-in EMI filter. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B. We offer various types of this Mean Well series. dual output output: 8W overload protection: 110 to 250% withstand voltage: 1000V DC operating temperature: -40 to +71°C weight: 15g

Specifications

manufacturer
Manufacturer's name DCW08B-12
Case DIL 24 case
Input [V DC] 18...36
Output [V] 12
Output [mA] 66...335
Efficiency [%] 80
Output2 [mA] -66...-335
Ripple [mV] 60
Output2 [V] -12
Data Sheet

Unit price

14,29 €

Volume discounts

Quantity Unit price
50 + 13,29 €

Stock: 0
Next incoming goods:
CW 03/2026
5 units

Further delivery:
CW 09/2026
