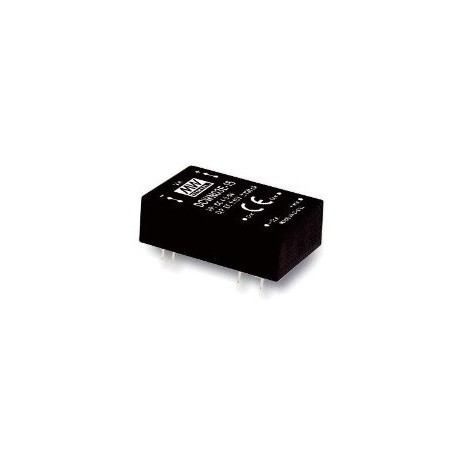

DCWN03C-05

Mean Well DC/DC converter series DCWN03

Regulated DC/DC converters in a DIL24 housing with 3W and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: DCWN03E-05, DCWN03E-12, DCWN03E-15, DCWN03A-05, DCWN03A-12, DCWN03A-15, DCWN03B-05, DCWN03B-12, DCWN03B-15, DCWN03C-05, DCWN03C-12 and DCWN03C-15.

  • dual output
  • output: 3W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 12,5g
Meanwell DCWN03 series

DCWN03C-05

110484 DCWN03C-05 DCWN03C-05 4711287475561 Mean Well DC/DC converter series DCWN03. Regulated DC/DC converters in a DIL24 housing with 3W and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: DCWN03E-05, DCWN03E-12, DCWN03E-15, DCWN03A-05, DCWN03A-12, DCWN03A-15, DCWN03B-05, DCWN03B-12, DCWN03B-15, DCWN03C-05, DCWN03C-12 and DCWN03C-15. dual output output: 3W output voltage tolerance: ±1,5% maximal ripple and noise: 50mVpp withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 12,5g

Specifications

manufacturer
Manufacturer's name DCWN03C-05
GTIN 4711287475561
Input voltage [V] 36...72
Output voltage [V] ±5
Output current range [mA] ±0...300
Efficiency [%] 85
Data Sheet

Unit price

8,29 €

Volume discounts

Quantity Unit price
50 + 7,69 €

Stock: 76
Further delivery:
CW 40/2024
