DCWN06W8-15

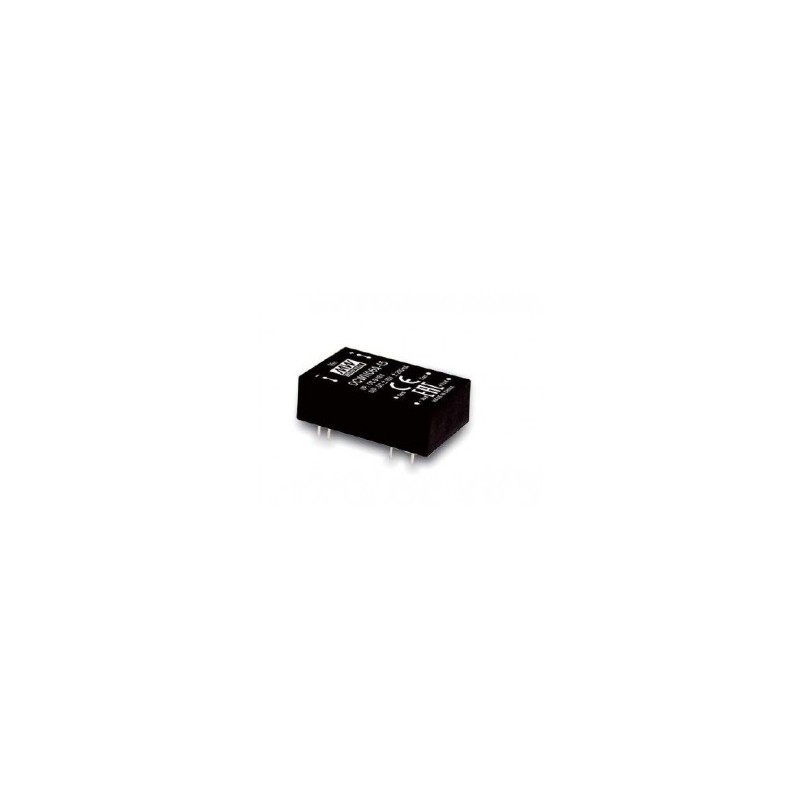

Mean Well DC/DC converter series DCWN06

Regulated DC/DC converters in a DIL24 housing with 6W and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A (without additional components). We offer various types of this Mean Well series.

  • dual output
  • output: 6W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 12,5g

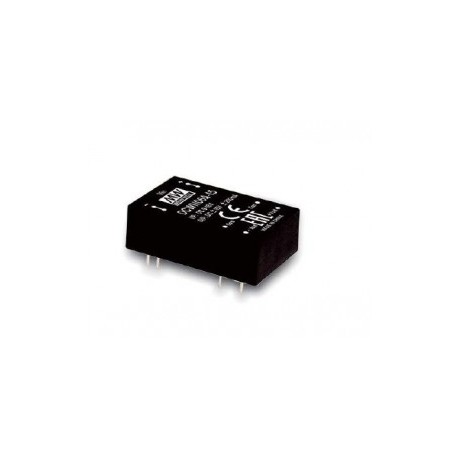

DCWN06W8-15, Mean Well DC/DC converters, 6W, DIL24 housing, DCWN06 series

DCWN06W8-15

255440 DCWN06W8-15 DCWN06W8-15 Mean Well DC/DC converter series DCWN06. Regulated DC/DC converters in a DIL24 housing with 6W and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A (without additional components). We offer various types of this Mean Well series. dual output output: 6W output voltage tolerance: ±1,5% maximal ripple and noise: 50mVpp withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 12,5g

Specifications

manufacturer
Manufacturer's name DCWN06W8-15
Input voltage [V] 9...75
Output voltage [V] ±15
Output current range [mA] ±0...200
Efficiency [%] 85
Ripple [mVp-p] 100
Data Sheet

Unit price

8,59 €

Volume discounts

Quantity Unit price
50 + 7,99 €

Stock: 0
Next incoming goods:
CW 03/2026
10 units

Further delivery:
CW 09/2026
