DETN01N-12SC

Mean Well DC/DC converter series DETN01

Unregulated DC/DC converters in an SMD housing with 1W. These low-cost devices are suitable for direct PCB mounting and are protected against short circuit. They have a high efficiency (up to 83%) and comply with EN55032 class B. We offer various types of this Mean Well series.

  • dual output
  • output: 1W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 1,2g

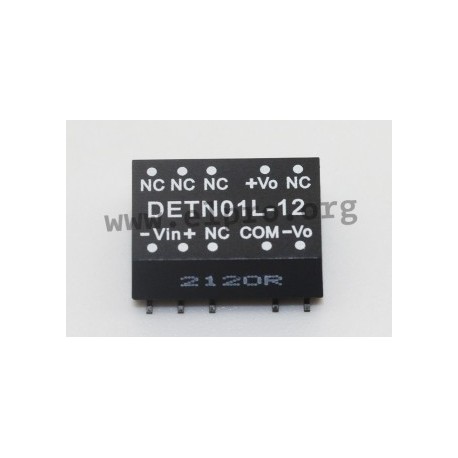

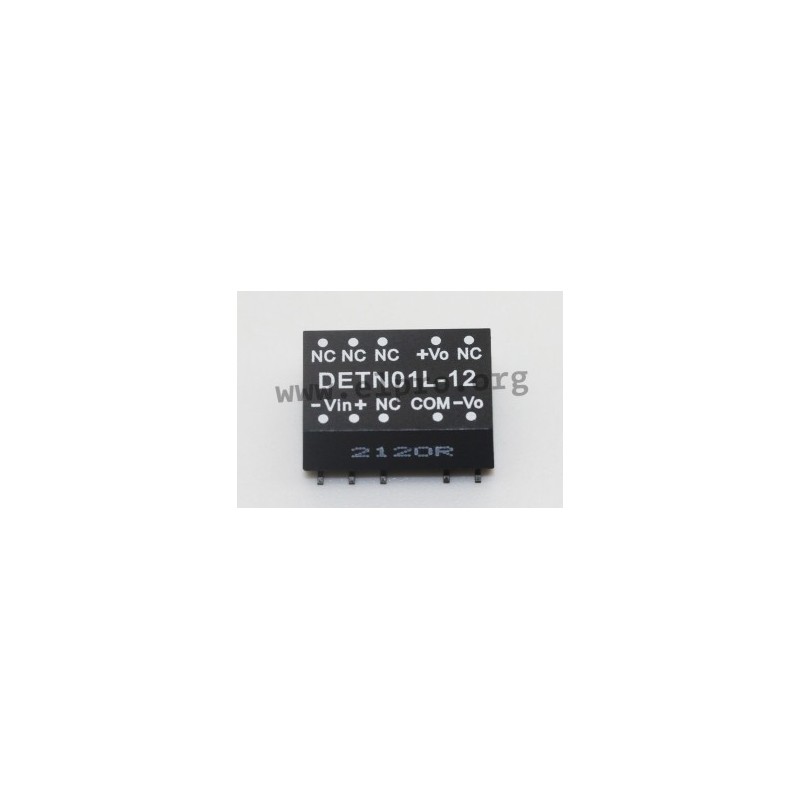

DETN01N-12SC, Mean Well DC/DC converters, 1W, SMD, DETN01 series

DETN01N-12SC

255474 DETN01N-12SC DETN01N-12SC Mean Well DC/DC converter series DETN01. Unregulated DC/DC converters in an SMD housing with 1W. These low-cost devices are suitable for direct PCB mounting and are protected against short circuit. They have a high efficiency (up to 83%) and comply with EN55032 class B. We offer various types of this Mean Well series. dual output output: 1W output voltage tolerance: ±2% maximal ripple and noise: 75mVpp withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 1,2g

Specifications

manufacturer
Manufacturer's name DETN01N-12SC
Input voltage [V] 21,6...26,4
Output voltage [V] ±12
Efficiency [%] 77
Output current range [A] ±0,042
Data Sheet

Unit price

4,39 €

Stock: 0
Further delivery:
CW 12/2026

Minimum order quantity 200 units or
multiples of 200.
