DETN02M-15N

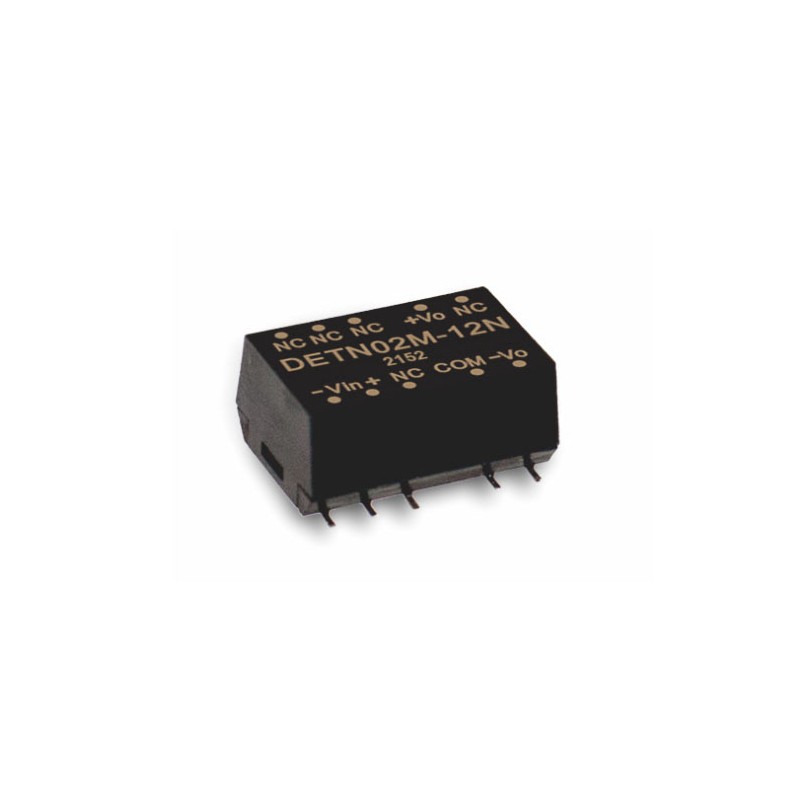

Mean Well DC/DC converter series DETN02-N

Unregulated DC/DC converters in an SMD housing with 2W and an input voltage ratio of 1:1. These devices are efficient, inexpensive and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032. We offer the following types of this Mean Well series: DETN02L-05N, DETN02L-12N, DETN02L-15N, DETN02M-05N, DETN02M-12N, DETN02M-15N, DETN02N-05N, DETN02N-12N and DETN02N-15N.

  • dual output
  • output: 2W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +100°C
  • weight: 1,2g

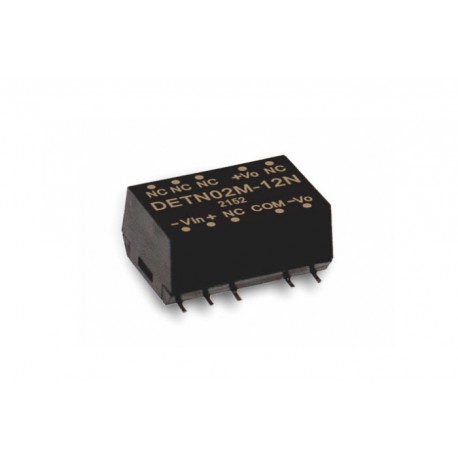

DETN02M-15N, Mean Well DC/DC converters, 2W, SMD, DETN02-N series

DETN02M-15N

241399 DETN02M-15N DETN02M-15N 4711287471297 Mean Well DC/DC converter series DETN02-N. Unregulated DC/DC converters in an SMD housing with 2W and an input voltage ratio of 1:1. These devices are efficient, inexpensive and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032. We offer the following types of this Mean Well series: DETN02L-05N, DETN02L-12N, DETN02L-15N, DETN02M-05N, DETN02M-12N, DETN02M-15N, DETN02N-05N, DETN02N-12N and DETN02N-15N. dual output output: 2W output voltage tolerance: ±5% maximal ripple and noise: 100mVpp withstand voltage: 3000V DC operating temperature: -40 to +100°C weight: 1,2g

Specifications

manufacturer
Manufacturer's name DETN02M-15N
GTIN 4711287471297
Output voltage [V] ±15
Input voltage range [V] 10,8...13,2
Efficiency [%] 81
Output current [A] ±0,066
Data Sheet

Unit price

5,19 €

Volume discounts

Quantity Unit price
50 + 4,69 €

Stock: 16
Further delivery:
CW 44/2024
