DETN02L-12SC

Mean Well DC/DC converter series DETN02

Unregulated DC/DC converters in an SMD housing with 2W and a high efficiency (up to 83%). These devices are suitable for direct PCB mounting and are protected against short circuit. They are reasonably priced and comply with EN55032 class A. We offer various types of this Mean Well series.

  • dual output
  • output: 2W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +100°C
  • weight: 1,2g

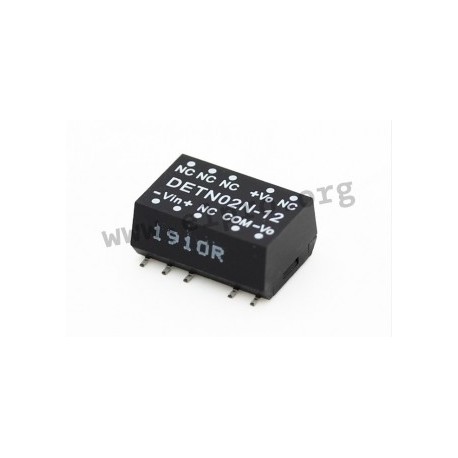

DETN02L-12SC, Mean Well DC/DC converters, 2W, SMD, DETN02 series

DETN02L-12SC

255477 DETN02L-12SC DETN02L-12SC Mean Well DC/DC converter series DETN02. Unregulated DC/DC converters in an SMD housing with 2W and a high efficiency (up to 83%). These devices are suitable for direct PCB mounting and are protected against short circuit. They are reasonably priced and comply with EN55032 class A. We offer various types of this Mean Well series. dual output output: 2W output voltage tolerance: ±2% maximal ripple and noise: 75mVpp withstand voltage: 3000V DC operating temperature: -40 to +100°C weight: 1,2g

Specifications

manufacturer
Manufacturer's name DETN02L-12SC
Input voltage [V] 4,5...5,5
Output voltage [V] ±12
Efficiency [%] 80
Data Sheet

Unit price

4,69 €

Stock: 0
Further delivery:
CW 12/2026

Minimum order quantity 200 units or
multiples of 200.
