DRP-3200-48

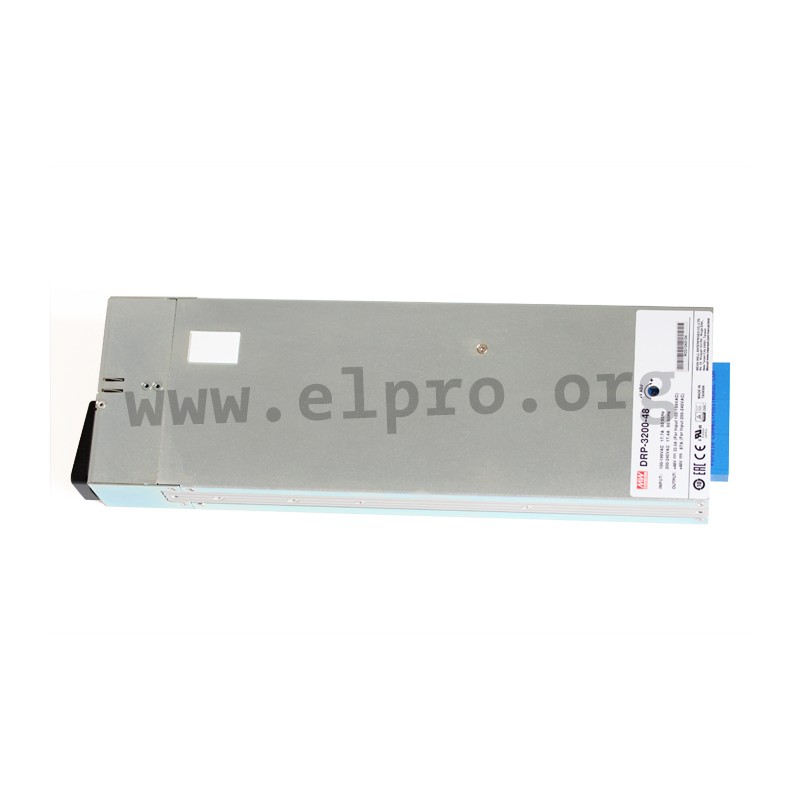

Mean Well power supply series DRP-3200

Switching power supplies in an enclosed housing with 3200W, a universal input, an OR-ing FET, a hot swap function, a fan, an I²C interface and a PMBus protocol. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 12.800W in a 19" rack and comply with EN55032/EN55011 class B as well as EN55032 class A. We offer the types DRP-3200-24 and DRP-3200-48 of this Mean Well series as well as the matching 19" rack DHP-1UT-A

  • single output
  • output: 3192 to 3216W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <1,5mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 2650g

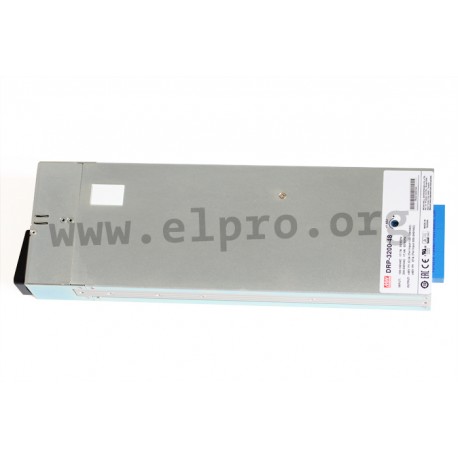

DRP-3200-48, Mean Well switching power supplies, 3200W, rack power, DRP-3200 series

DRP-3200-48

111887 DRP-3200-48 DRP-3200-48 4711232761190 Mean Well power supply series DRP-3200. Switching power supplies in an enclosed housing with 3200W, a universal input, an OR-ing FET, a hot swap function, a fan, an I²C interface and a PMBus protocol. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 12.800W in a 19" rack and comply with EN55032/EN55011 class B as well as EN55032 class A. We offer the types DRP-3200-24 and DRP-3200-48 of this Mean Well series as well as the matching 19" rack DHP-1UT-A single output output: 3192 to 3216W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 55A leakage current: &lt;1,5mA overload protection: 105 to 115% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C weight: 2650g

Specifications

manufacturer
Manufacturer's name DRP-3200-48
GTIN 4711232761190
Output voltage [V] 48
Efficiency [%] 94,5
Output current range [A] 0...67
Output voltage tolerance: [%] 1
Output power [W] 3216
Ripple [mVp-p] 480
Data Sheet

Unit price

171,89 €

Stock: 1
Further delivery:
CW 21/2026
