DPAN02B-05

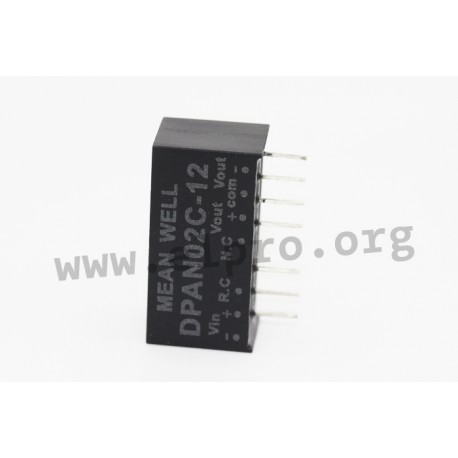

Mean Well DC/DC converter series DPAN02

Regulated DC/DC converters in a SIL8 housing with 2W, a high efficiency (up to 85%) and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: DPAN02E-05, DPAN02E-12, DPAN02E-15, DPAN02A-05, DPAN02A-12, DPAN02A-15, DPAN02B-05, DPAN02B-12, DPAN02B-15, DPAN02C-05, DPAN02C-12 and DPAN02C-15.

  • dual output
  • output: 2W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 4,8g
Meanwell DPAN02 series

DPAN02B-05

110381 DPAN02B-05 DPAN02B-05 4711287478395 Mean Well DC/DC converter series DPAN02. Regulated DC/DC converters in a SIL8 housing with 2W, a high efficiency (up to 85%) and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: DPAN02E-05, DPAN02E-12, DPAN02E-15, DPAN02A-05, DPAN02A-12, DPAN02A-15, DPAN02B-05, DPAN02B-12, DPAN02B-15, DPAN02C-05, DPAN02C-12 and DPAN02C-15. dual output output: 2W output voltage tolerance: ±1,5% maximal ripple and noise: 75mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 4,8g

Specifications

manufacturer
Manufacturer's name DPAN02B-05
GTIN 4711287478395
Input voltage [V] 18...36
Output voltage [V] ±5
Output current range [mA] ±0...200
Efficiency [%] 79
Data Sheet

Unit price

6,99 €

Volume discounts

Quantity Unit price
50 + 6,49 €

Stock: 13
Next incoming goods:
CW 25/2024
54 units

Further delivery:
CW 40/2024
