DPAN02E-15

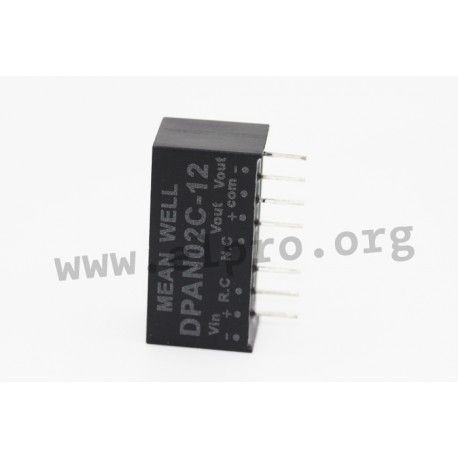

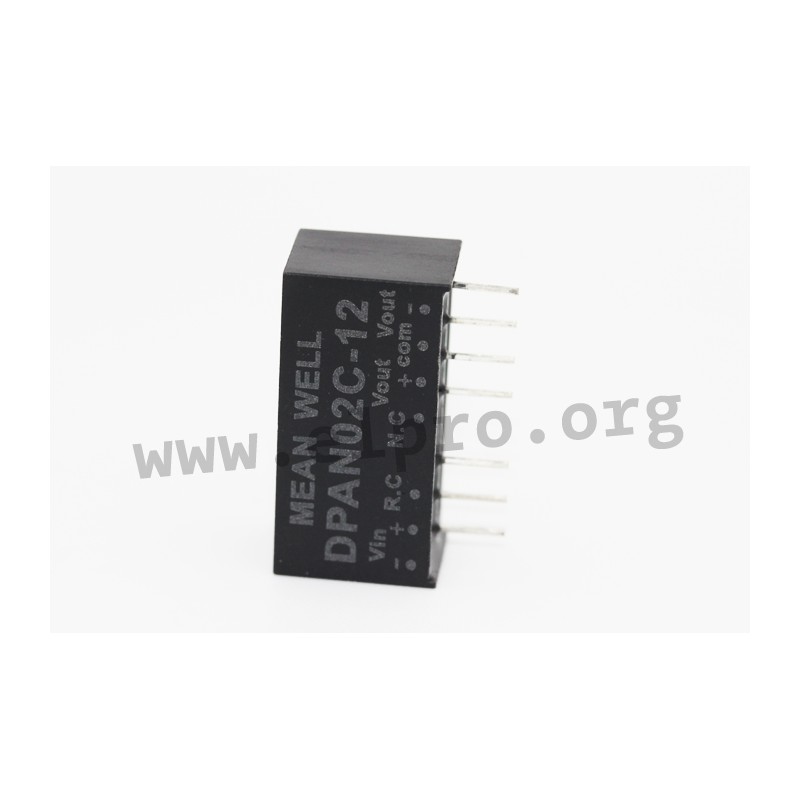

Mean Well DC/DC converter series DPAN02

Regulated DC/DC converters in a SIL8 housing with 2W, a high efficiency (up to 85%) and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: DPAN02E-05, DPAN02E-12, DPAN02E-15, DPAN02A-05, DPAN02A-12, DPAN02A-15, DPAN02B-05, DPAN02B-12, DPAN02B-15, DPAN02C-05, DPAN02C-12 and DPAN02C-15.

  • dual output
  • output: 2W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 4,8g
Meanwell DPAN02 series

DPAN02E-15

110389 DPAN02E-15 DPAN02E-15 Mean Well DC/DC converter series DPAN02. Regulated DC/DC converters in a SIL8 housing with 2W, a high efficiency (up to 85%) and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: DPAN02E-05, DPAN02E-12, DPAN02E-15, DPAN02A-05, DPAN02A-12, DPAN02A-15, DPAN02B-05, DPAN02B-12, DPAN02B-15, DPAN02C-05, DPAN02C-12 and DPAN02C-15. dual output output: 2W output voltage tolerance: ±1,5% maximal ripple and noise: 75mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 4,8g

Specifications

manufacturer
Manufacturer's name DPAN02E-15
Input voltage [V] 4,5...9
Output voltage [V] ±15
Output current range [mA] ±0...67
Efficiency [%] 80
Data Sheet

Unit price

6,99 €

Volume discounts

Quantity Unit price
50 + 6,49 €

Stock: 276
Further delivery:
CW 40/2024
