DPBW03F-15

Mean Well DC/DC converter series DPBW03

Regulated DC/DC converters in a SIL8 housing with 3W, an input voltage ratio of 4:1 and a built-in remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class B. We offer the following types of this Mean Well series: DPBW03F-05, DPBW03F-12, DPBW03F-15, DPBW03G-05, DPBW03G-12 and DPBW03G-15.

  • dual output
  • output: 3W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 4,8g

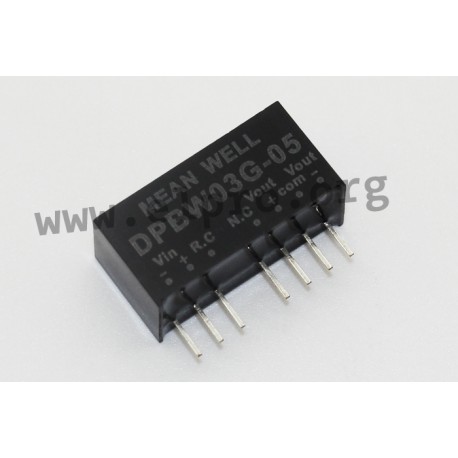

DPBW03F-15, Mean Well DC/DC converters, 3W, SIL8 housing, DPBW03 series

DPBW03F-15

110400 DPBW03F-15 DPBW03F-15 4711287478821 Mean Well DC/DC converter series DPBW03. Regulated DC/DC converters in a SIL8 housing with 3W, an input voltage ratio of 4:1 and a built-in remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class B. We offer the following types of this Mean Well series: DPBW03F-05, DPBW03F-12, DPBW03F-15, DPBW03G-05, DPBW03G-12 and DPBW03G-15. dual output output: 3W output voltage tolerance: ±1,5% maximal ripple and noise: 50mVpp withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 4,8g

Specifications

manufacturer
Manufacturer's name DPBW03F-15
GTIN 4711287478821
Input voltage [V] 9...36
Output voltage [V] ±15
Output current range [mA] ±0...100
Efficiency [%] 81
Data Sheet

Unit price

7,79 €

Volume discounts

Quantity Unit price
50 + 7,29 €

Stock: 262
Further delivery:
CW 40/2024
