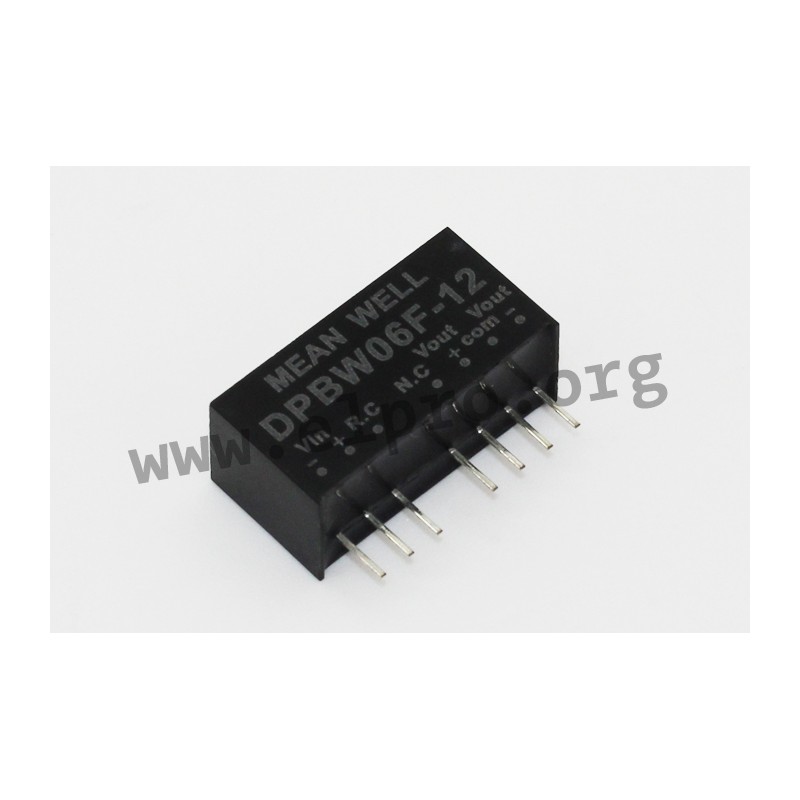

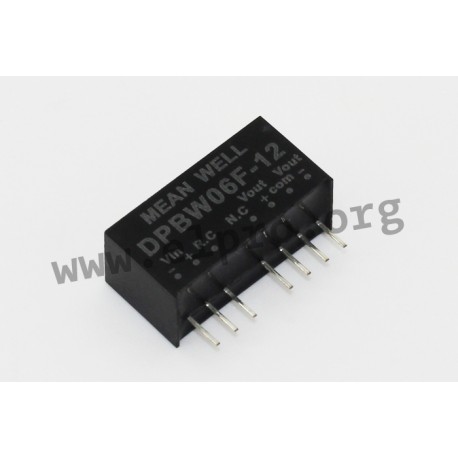

DPBW06G-05

Mean Well DC/DC converter series DPBW06

DC/DC converters in a SIL8 housing with 6W, a regulated output voltage, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum load and comply with EN55032. We offer the following types of this Mean Well series: DPBW06F-05, DPBW06F-12, DPBW06F-15, DPBW06G-05, DPBW06G-12 and DPBW06G-15.

  • dual output
  • output: 6W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 4,8g
DPBW06G-05, 6 W, SIL 8 housing, DPBW06 series by Meanwell

DPBW06G-05

110502 DPBW06G-05 DPBW06G-05 4711287478975 Mean Well DC/DC converter series DPBW06. DC/DC converters in a SIL8 housing with 6W, a regulated output voltage, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum load and comply with EN55032. We offer the following types of this Mean Well series: DPBW06F-05, DPBW06F-12, DPBW06F-15, DPBW06G-05, DPBW06G-12 and DPBW06G-15. dual output output: 6W output voltage tolerance: ±1,5% maximal ripple and noise: 100mVpp withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 4,8g

Specifications

manufacturer
Manufacturer's name DPBW06G-05
GTIN 4711287478975
Input voltage [V] 18...75
Output voltage [V] ±5
Output current range [mA] ±0...600
Efficiency [%] 85
Data Sheet

Unit price

9,59 €

Volume discounts

Quantity Unit price
50 + 8,89 €

Stock: 44
Further delivery:
CW 40/2024
