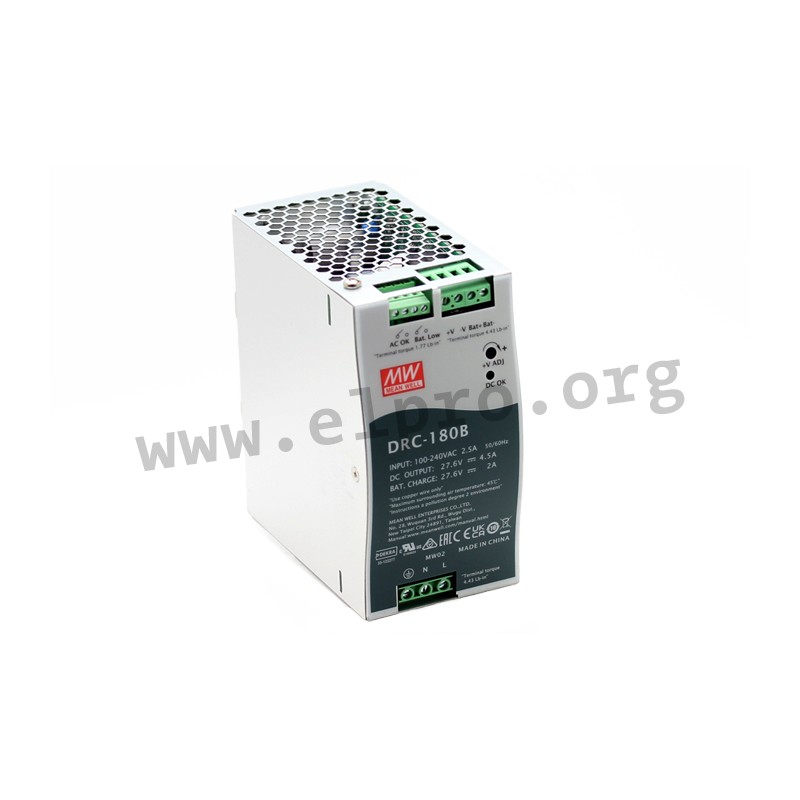

DRC-180B

Mean Well battery charger series DRC-180

Switching power supplies in a DIN rail housing (TS-35-7,5/15) with 180W, a universal input, a UPS function (battery charger), an LED indicator for Power on and an alarm signal for AC OK and battery low. These devices have a built-in active PFC function and are protected against overvoltage, overload, battery low, voltage reversal as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: DRC-180A and DRC-180B.

  • single output
  • output: 179,4W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • input current: 1,5A
  • leakage current: <2mA
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 710g
DRC-180B, Mean Well DIN rail battery chargers, 180W, UPS function, DRC-180 series

DRC-180B

241222 DRC-180B DRC-180B 4711287484716 Mean Well battery charger series DRC-180. Switching power supplies in a DIN rail housing (TS-35-7,5/15) with 180W, a universal input, a UPS function (battery charger), an LED indicator for Power on and an alarm signal for AC OK and battery low. These devices have a built-in active PFC function and are protected against overvoltage, overload, battery low, voltage reversal as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: DRC-180A and DRC-180B. single output output: 179,4W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC input current: 1,5A leakage current: &lt;2mA withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 710g

Specifications

manufacturer
Manufacturer's name DRC-180B
GTIN 4711287484716
Output voltage [V] 27,6/27,6
Efficiency [%] 90
Output current [A] 4,5/2
Output voltage tolerance: [%] 1
Output power [W] 179,4
Ripple [mVp-p] 240
Data Sheet

Unit price

72,39 €

Volume discounts

Quantity Unit price
50 + 69,99 €

Stock: 94
Further delivery:
CW 36/2024
