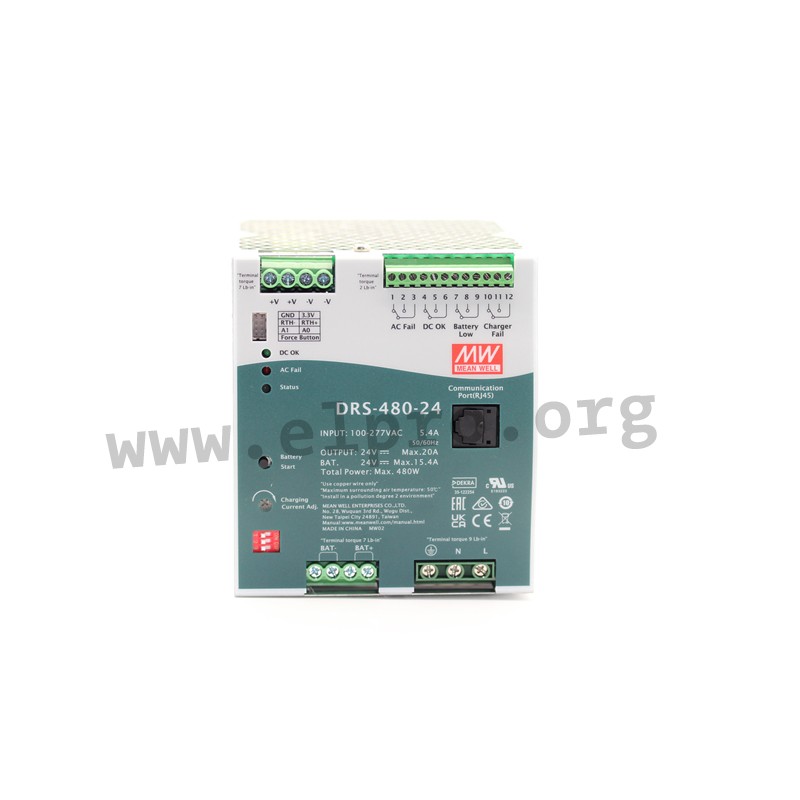

DRS-480-24CAN

Mean Well battery charger series DRS-480

Switching power supplies in a DIN rail housing with 480W, a UPS function, a CAN bus interface, a universal input and a 2/3 stage charging curve. These devices are suitable for lead-acid as well as Li-ion batteries and are protected against overload, overvoltage, short circuit, deep discharge as well as voltage reversal. They have relay contacts for DC OK, AC fail, battery low as well as charger fail and comply with EN62368-1, EN55032 class A as well as EN61000-3-2. We offer the following types of this Mean Well series: DRS-480-24CAN, DRS-480-36CAN and DRS-480-48CAN.

  • single output
  • output: 480W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 1650g

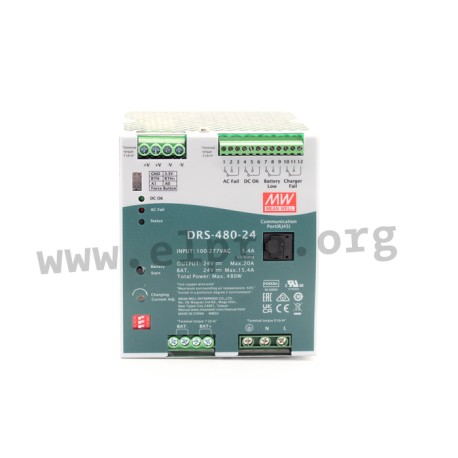

DRS-480-24CAN, Mean Well DIN rail battery chargers, 480W, UPS function, CAN bus, DRS-480 series

DRS-480-24CAN

244537 DRS-480-24CAN DRS-480-24CAN Mean Well battery charger series DRS-480. Switching power supplies in a DIN rail housing with 480W, a UPS function, a CAN bus interface, a universal input and a 2/3 stage charging curve. These devices are suitable for lead-acid as well as Li-ion batteries and are protected against overload, overvoltage, short circuit, deep discharge as well as voltage reversal. They have relay contacts for DC OK, AC fail, battery low as well as charger fail and comply with EN62368-1, EN55032 class A as well as EN61000-3-2. We offer the following types of this Mean Well series: DRS-480-24CAN, DRS-480-36CAN and DRS-480-48CAN. single output output: 480W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C weight: 1650g

Specifications

manufacturer
Manufacturer's name DRS-480-24CAN
Output voltage [V] 24
Efficiency [%] 92,5
Output current [A] 20
Output voltage tolerance: [%] 1
Output power [W] 480
Ripple [mVp-p] 240
Data Sheet

Unit price

239,29 €

Stock: 0
Further delivery:
CW 36/2024

Minimum order quantity 200 units or
multiples of 200.
