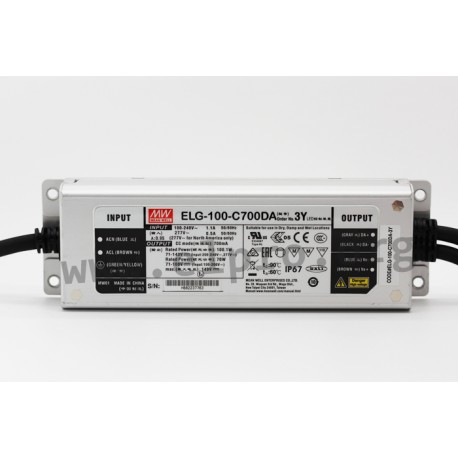

ELG-100-C700DA-3Y

Mean Well LED driver series ELG-100-C

LED drivers in a metal housing (IP67) with a constant current, 100W, a DALI interface and a protective earth conductor. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-C350DA-3Y, ELG-100-C500DA-3Y, ELG-100-C700DA-3Y, ELG-100-C1050DA-3Y and ELG-100-C1400DA-3Y.

  • single output
  • output: 99,75 to 100,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 40A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g

ELG-100-C700DA-3Y

109309 ELG-100-C700DA-3Y ELG-100-C700DA-3Y 4711287444635 Mean Well LED driver series ELG-100-C . LED drivers in a metal housing (IP67) with a constant current, 100W, a DALI interface and a protective earth conductor. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-C350DA-3Y, ELG-100-C500DA-3Y, ELG-100-C700DA-3Y, ELG-100-C1050DA-3Y and ELG-100-C1400DA-3Y. single output output: 99,75 to 100,8W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 40A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 199x63x35,5mm weight: 850g

Specifications

manufacturer
Manufacturer's name ELG-100-C700DA-3Y
GTIN 4711287444635
Output voltage [V] 71...143
Output current tolerance [%] 5
Efficiency [%] 90
Output power [W] 100,1
Output current [mA] 700
Data Sheet

Unit price

35,29 €

Volume discounts

Quantity Unit price
50 + 34,09 €

Stock: 29
Further delivery:
CW 29/2024
