ELG-100-C1400A-3Y

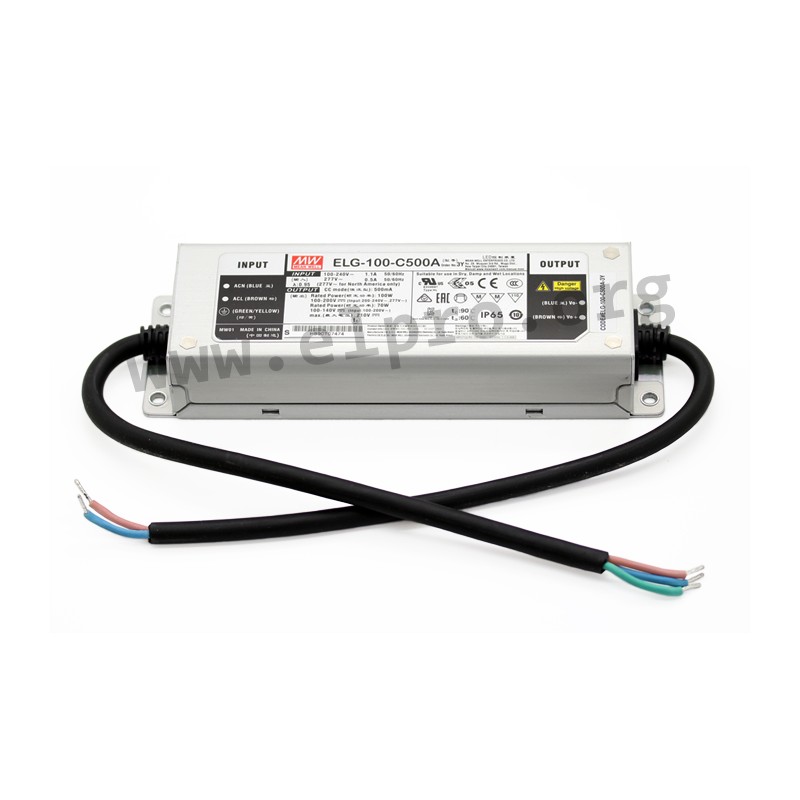

Mean Well LED driver series ELG-100-C

LED drivers in a metal housing (IP65) with a constant current, 100W and a protective earth conductor PE. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-C350A-3Y, ELG-100-C500A-3Y, ELG-100-C700A-3Y, ELG-100-C1050A-3Y and ELG-100-C1400A-3Y.

  • single output
  • output: 99,75 to 100,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 40A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g

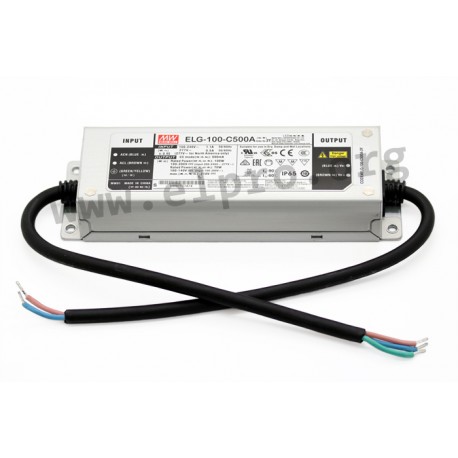

ELG-100-C1400A-3Y, Mean Well LED drivers, 100W, IP65, constant current, adjustable, protective earth conductor (PE), ELG-100-C s

ELG-100-C1400A-3Y

123307 ELG-100-C1400A-3Y ELG-100-C1400A-3Y 4711287444116 Mean Well LED driver series ELG-100-C. LED drivers in a metal housing (IP65) with a constant current, 100W and a protective earth conductor PE. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-C350A-3Y, ELG-100-C500A-3Y, ELG-100-C700A-3Y, ELG-100-C1050A-3Y and ELG-100-C1400A-3Y. single output output: 99,75 to 100,8W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 40A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 199x63x35,5mm weight: 850g

Specifications

manufacturer
Manufacturer's name ELG-100-C1400A-3Y
GTIN 4711287444116
Output current tolerance [%] 5
Efficiency [%] 90
Output power [W] 100,8
Output current [mA] 1400
Output voltage range [V] 35...72
Data Sheet

Unit price

32,69 €

Volume discounts

Quantity Unit price
50 + 31,59 €

Stock: 15
Further delivery:
CW 33/2024
