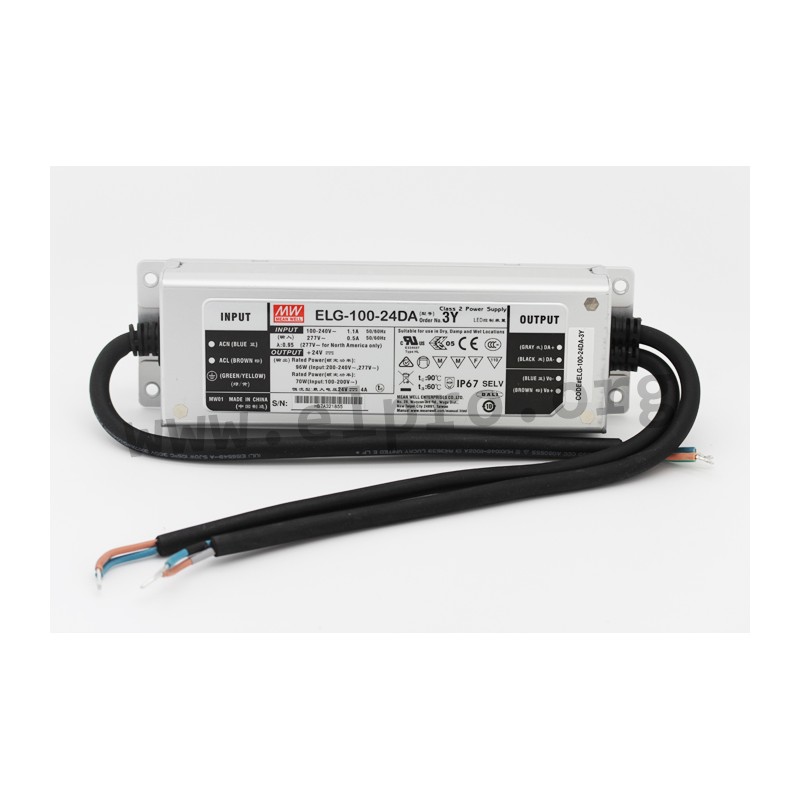

ELG-100-54DA-3Y

Mean Well LED driver series ELG-100

LED drivers in a metal housing (IP67) with a constant current / constant voltage (mixed mode), 100W and a DALI interface. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-24DA-3Y, ELG-100-36DA-3Y, ELG-100-42DA-3Y, ELG-100-48DA-3Y and ELG-100-54DA-3Y.

  • single output
  • output: 95,76 to 96,12W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-laod power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 850g

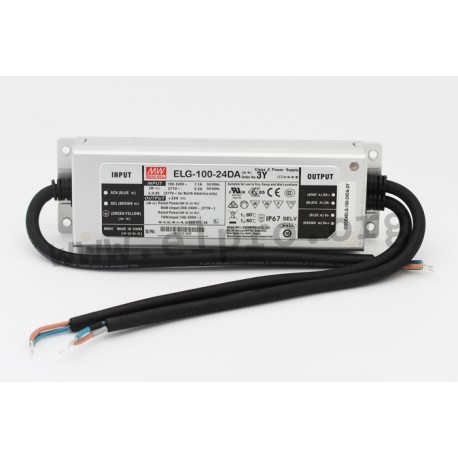

ELG-100-54DA-3Y, Mean Well LED switching power supplies, 100W, IP67, dimmable, DALI interface, ELG-100 series

ELG-100-54DA-3Y

123280 ELG-100-54DA-3Y ELG-100-54DA-3Y 4711287440705 Mean Well LED driver series ELG-100. LED drivers in a metal housing (IP67) with a constant current / constant voltage (mixed mode), 100W and a DALI interface. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-24DA-3Y, ELG-100-36DA-3Y, ELG-100-42DA-3Y, ELG-100-48DA-3Y and ELG-100-54DA-3Y. single output output: 95,76 to 96,12W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-laod power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 850g

Specifications

manufacturer
Manufacturer's name ELG-100-54DA-3Y
GTIN 4711287440705
Output voltage [V] 54
Efficiency [%] 91
Output current [A] 1,78
Output voltage tolerance: [%] 2
Output power [W] 96,12
Ripple [mVp-p] 350
Data Sheet

Unit price

38,19 €

Volume discounts

Quantity Unit price
50 + 36,89 €

Stock: 7
Further delivery:
CW 32/2024
