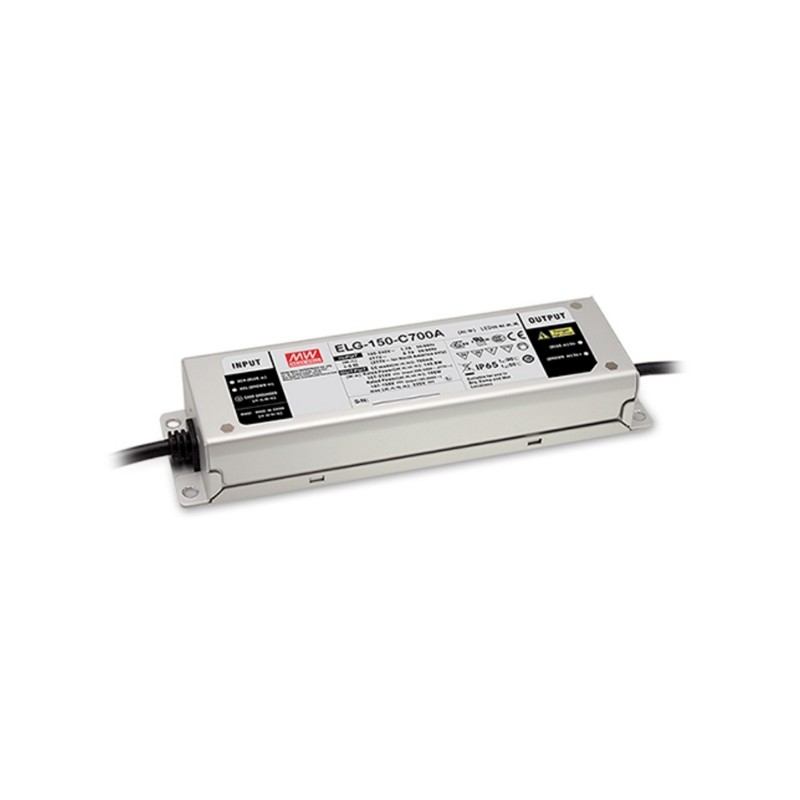

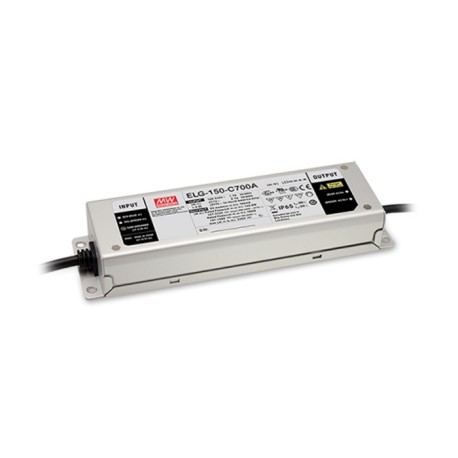

ELG-150-C700AB-3Y

Mean Well LED driver series ELG-150-C

LED drivers in a metal housing (IP65) with 150W, a constant current, a dimming function and a protective earth conductor (PE). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications, have a potentiometer for adjusting the current limitation and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: ELG-150-C500AB-3Y, ELG-150-C700AB-3Y, ELG-150-C1050AB-3Y, ELG-150-C1400AB-3Y and ELG-150-C1750AB-3Y.

  • single output
  • output: 149,8 to 150,5W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 950g
ELG-150-C700AB-3Y, Mean Well LED drivers, 150W, IP65, constant current, dimmable, adjustable, protective earth conductor (PE), E

ELG-150-C700AB-3Y

244746 ELG-150-C700AB-3Y ELG-150-C700AB-3Y 4711287445441 Mean Well LED driver series ELG-150-C. LED drivers in a metal housing (IP65) with 150W, a constant current, a dimming function and a protective earth conductor (PE). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications, have a potentiometer for adjusting the current limitation and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: ELG-150-C500AB-3Y, ELG-150-C700AB-3Y, ELG-150-C1050AB-3Y, ELG-150-C1400AB-3Y and ELG-150-C1750AB-3Y. single output output: 149,8 to 150,5W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 219x63x35,5mm weight: 950g

Specifications

manufacturer
Manufacturer's name ELG-150-C700AB-3Y
GTIN 4711287445441
Output voltage [V] 107...214
Output current tolerance [%] 5
Output current [mA] 700
Efficiency [%] 92
Output power [W] 149,8
Data Sheet

Unit price

42,89 €

Stock: 0
Further delivery:
CW 36/2024
