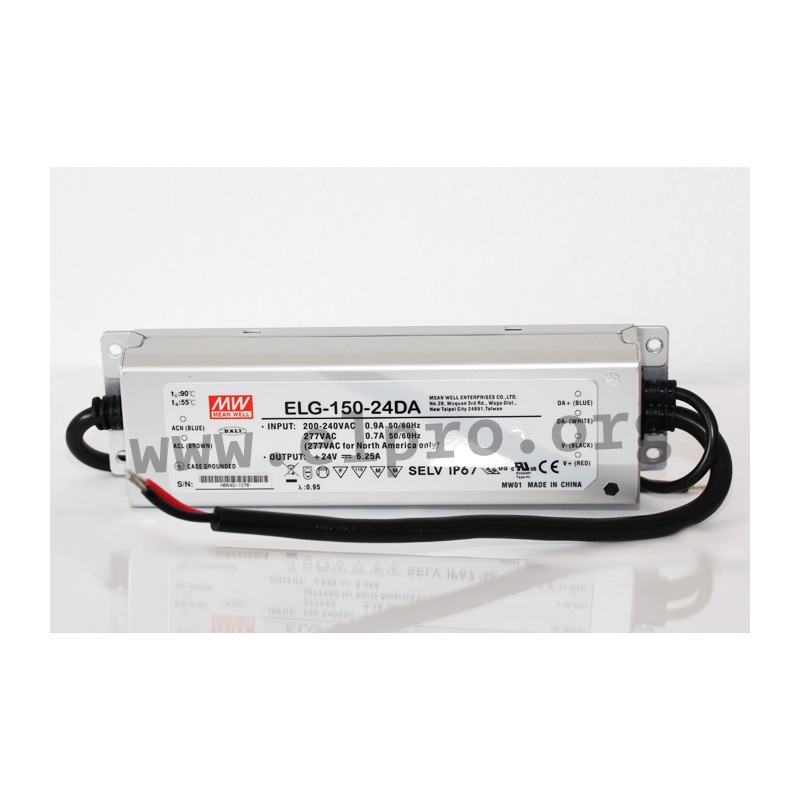

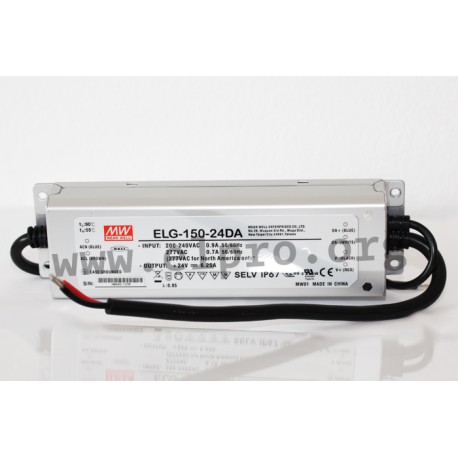

ELG-150-48DA

Mean Well LED driver series ELG-150

LED drivers in a metal housing (IP67) with a DALI interface, a constant voltage and 150W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level and are suitable for LED lighting applications. They are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and have a built-in active PFC function. We offer the type ELG-150-48DA of this Mean Well series.

  • single output
  • output: 150,2W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 950g
Mean Well ELG-150-_DA series

ELG-150-48DA

105020 ELG-150-48DA ELG-150-48DA 4711287441696 Mean Well LED driver series ELG-150. LED drivers in a metal housing (IP67) with a DALI interface, a constant voltage and 150W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level and are suitable for LED lighting applications. They are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and have a built-in active PFC function. We offer the type ELG-150-48DA of this Mean Well series. single output output: 150,2W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 219x63x35,5mm weight: 950g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name ELG-150-48DA
GTIN 4711287441696
Output voltage [V] 48
Efficiency [%] 90
Output current [A] 3,13
Output voltage tolerance: [%] 2
Output power [W] 150,2
Ripple [mVp-p] 250
Data Sheet

Unit price

33,90 €

Stock: 2
