ELG-150-42DA-3Y

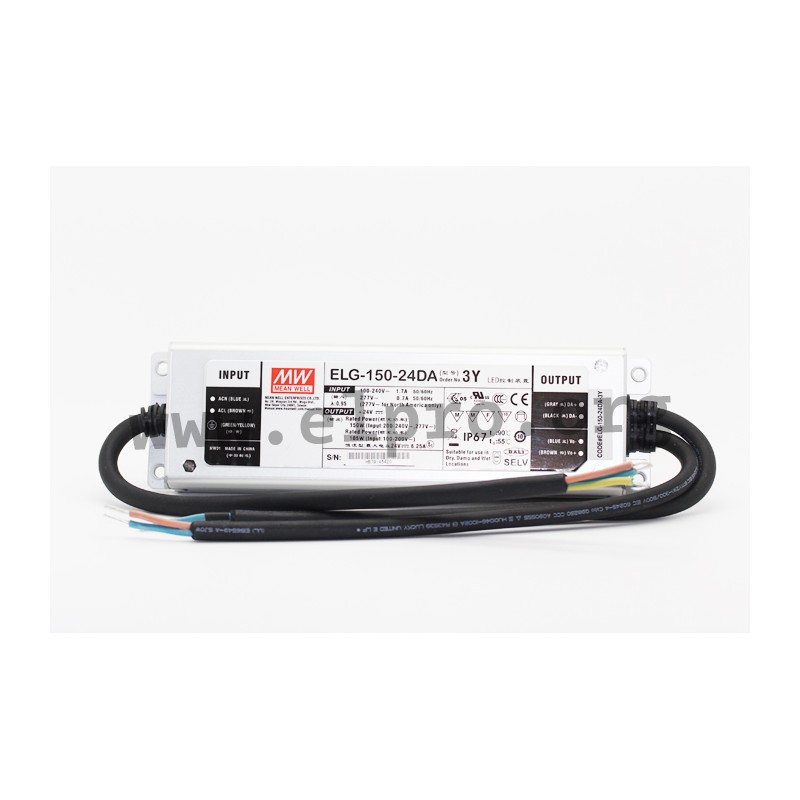

Mean Well LED driver series ELG-150

LED drivers in a metal housing (IP67) with a DALI interface, a constant voltage, a protective earth conductor PE and 150W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-150-12DA-3Y, ELG-150-24DA-3Y, ELG-150-36DA-3Y, ELG-150-42DA-3Y, ELG-150-48DA-3Y and ELG-150-54DA-3Y.

  • single output
  • output: 120 to 151,2W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 950g

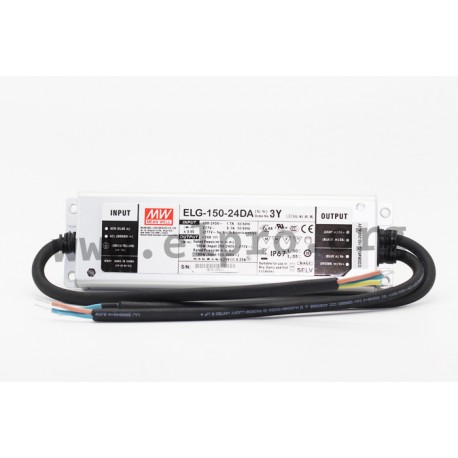

Mean Well ELG-150-_DA-3Y series

ELG-150-42DA-3Y

109252 ELG-150-42DA-3Y ELG-150-42DA-3Y 4711287441559 Mean Well LED driver series ELG-150. LED drivers in a metal housing (IP67) with a DALI interface, a constant voltage, a protective earth conductor PE and 150W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-150-12DA-3Y, ELG-150-24DA-3Y, ELG-150-36DA-3Y, ELG-150-42DA-3Y, ELG-150-48DA-3Y and ELG-150-54DA-3Y. single output output: 120 to 151,2W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 219x63x35,5mm weight: 950g

Specifications

manufacturer
Manufacturer's name ELG-150-42DA-3Y
GTIN 4711287441559
Output voltage [V] 42
Efficiency [%] 90
Output current [A] 3,57
Output voltage tolerance: [%] 2,5
Output power [W] 150
Ripple [mVp-p] 250
