ELG-240-C1050DA-3Y

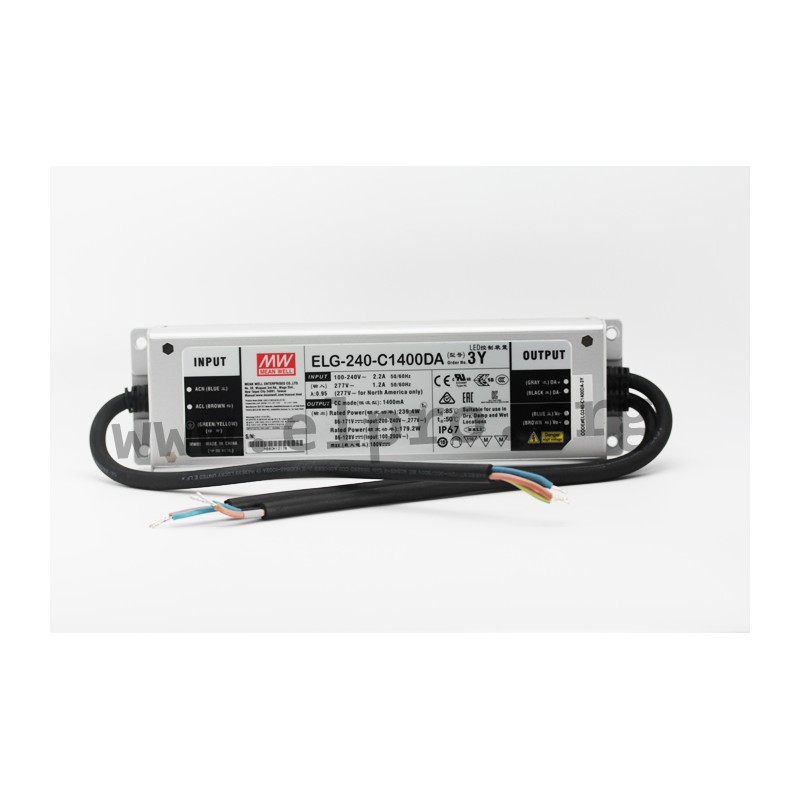

Mean Well LED driver series ELG-240-C

LED drivers in a metal case (IP67) with a constant current, a protective conductor PE (three wire primary cable) and 240W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-240-C700DA-3Y, ELG-240-C1050DA-3Y, ELG-240-C1400DA-3Y, ELG-240-C1750DA-3Y and ELG-240-C2100DA-3Y.

  • single output
  • output: 239,4 to 241,5W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 1220g

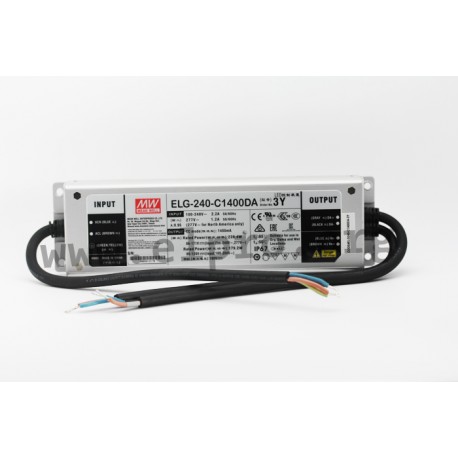

ELG-240-C1050DA-3Y, Mean Well LED switching power supplies, 240W, IP67, constant current, DALI interface, protective earth PE, E

ELG-240-C1050DA-3Y

123338 ELG-240-C1050DA-3Y ELG-240-C1050DA-3Y Mean Well LED driver series ELG-240-C. LED drivers in a metal case (IP67) with a constant current, a protective conductor PE (three wire primary cable) and 240W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-240-C700DA-3Y, ELG-240-C1050DA-3Y, ELG-240-C1400DA-3Y, ELG-240-C1750DA-3Y and ELG-240-C2100DA-3Y. single output output: 239,4 to 241,5W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-240-C1050DA-3Y
Output voltage [V] 114...228
Output current tolerance [%] 5
Efficiency [%] 93
Output power [W] 239,4
Output current [mA] 1050
Data Sheet

Unit price

51,89 €

Volume discounts

Quantity Unit price
50 + 50,09 €

Stock: 46
Further delivery:
CW 33/2024
