ELG-240-C700AB-3Y

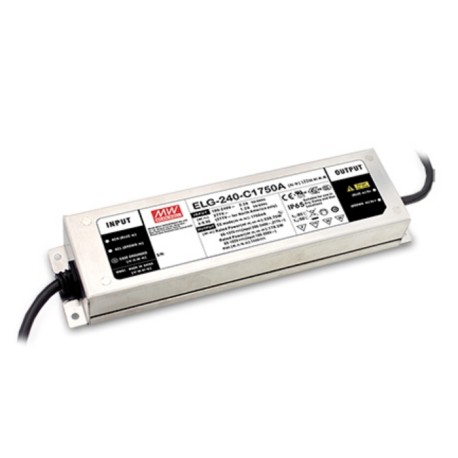

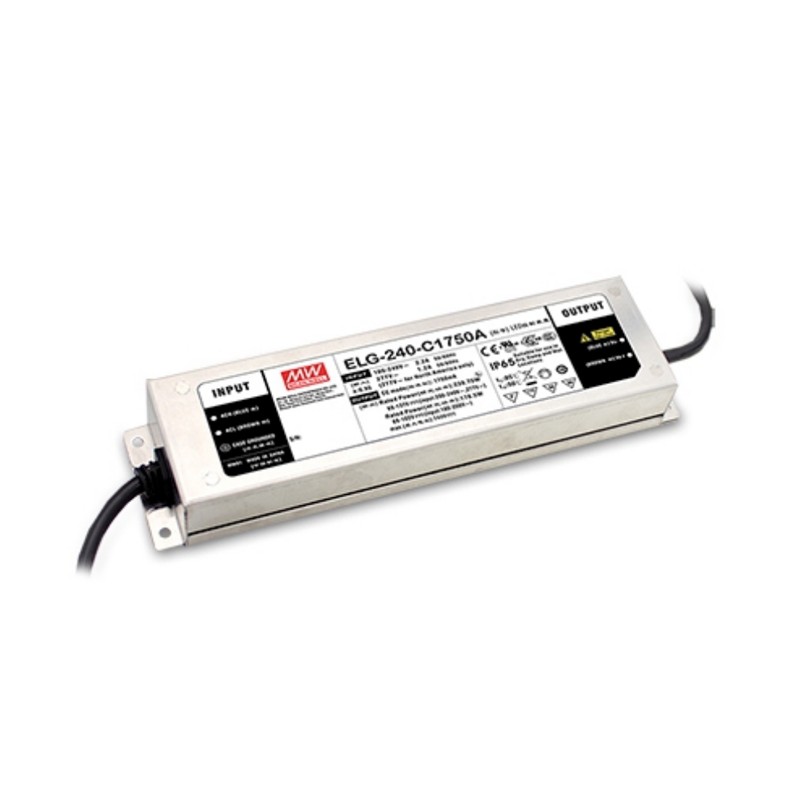

Mean Well LED driver series ELG-240-C

LED drivers in a metal housing (IP65) with 240W, a 3 in 1 dimming function and a potentiometer for adjusting the current limit. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: ELG-240-C700AB-3Y, ELG-240-C1050AB-3Y, ELG-240-C1400AB-3Y, ELG-240-C1750AB-3Y and ELG-240-C2100AB-3Y.

  • single output
  • output: 239,4 to 241,5W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g
ELG-240-C700AB-3Y, Mean Well LED drivers, 240W, IP65, constant current, dimmable, adjustable, protective earth conductor (PE), E

ELG-240-C700AB-3Y

244797 ELG-240-C700AB-3Y ELG-240-C700AB-3Y 4711287446967 Mean Well LED driver series ELG-240-C. LED drivers in a metal housing (IP65) with 240W, a 3 in 1 dimming function and a potentiometer for adjusting the current limit. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: ELG-240-C700AB-3Y, ELG-240-C1050AB-3Y, ELG-240-C1400AB-3Y, ELG-240-C1750AB-3Y and ELG-240-C2100AB-3Y. single output output: 239,4 to 241,5W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-240-C700AB-3Y
GTIN 4711287446967
Output voltage [V] 172...343
Output current tolerance [%] 5
Output current [mA] 700
Efficiency [%] 93
Output power [W] 240,1
Data Sheet

Unit price

54,99 €

Stock: 0
Further delivery:
CW 36/2024
