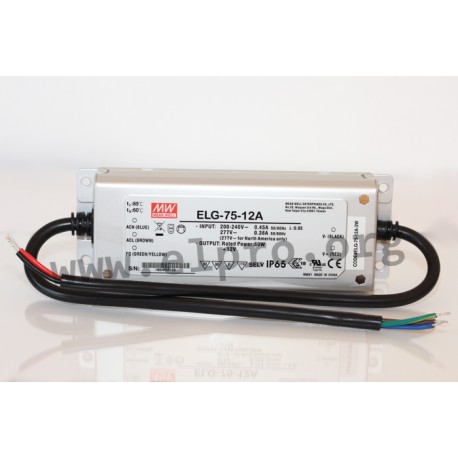

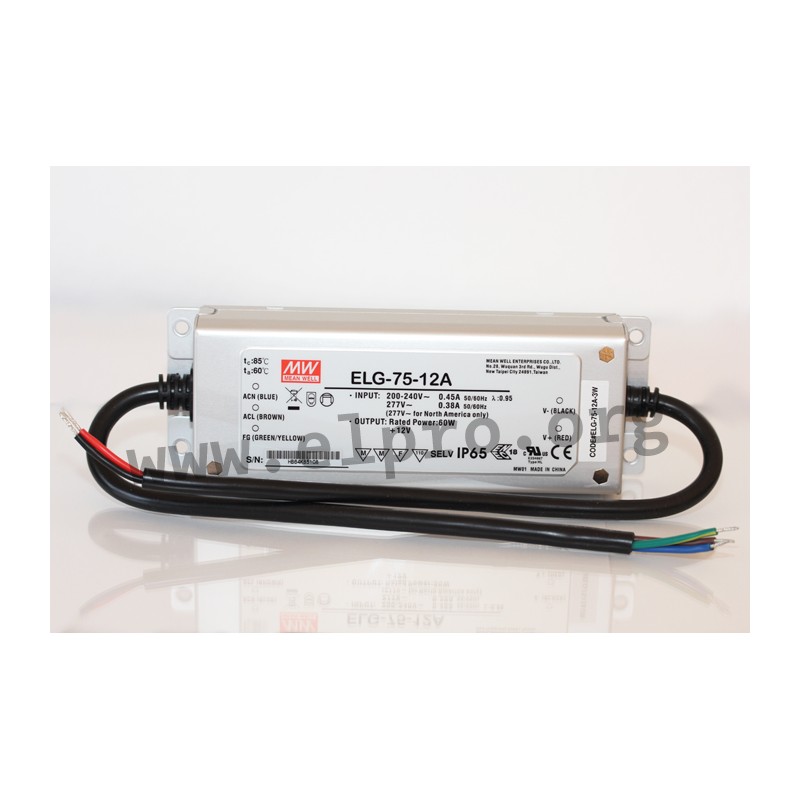

ELG-75-12A-3W

Mean Well LED driver series ELG-75

LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode), a protective earth conductor PE and 75W. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level and have a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage / current limitation. We offer the following types of this Mean Well series: ELG-75-12A-3Y, ELG-75-24A-3Y, ELG-75-36A-3Y, ELG-75-42A-3Y and ELG-75-48A-3Y.

  • single output
  • output: 60 to 76,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 180x63x35,5mm
  • weight: 800g

ELG-75-12A-3W

106442 ELG-75-12A-3W ELG-75-12A-3W Mean Well LED driver series ELG-75. LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode), a protective earth conductor PE and 75W. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level and have a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage / current limitation. We offer the following types of this Mean Well series: ELG-75-12A-3Y, ELG-75-24A-3Y, ELG-75-36A-3Y, ELG-75-42A-3Y and ELG-75-48A-3Y. single output output: 60 to 76,8W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 50A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 180x63x35,5mm weight: 800g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name ELG-75-12A-3W
Output voltage [V] 12
Efficiency [%] 85
Output current [A] 5
Output voltage tolerance: [%] 3
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

27,40 €

Stock: 3
