GE30I24-P1J

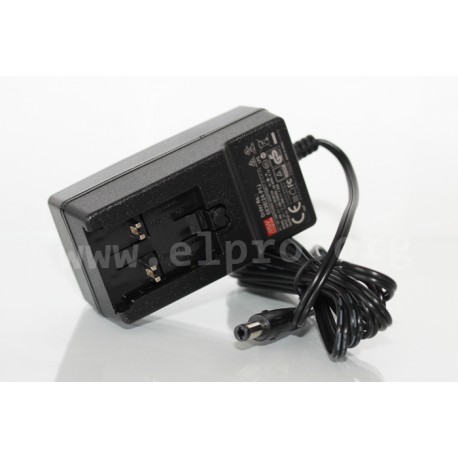

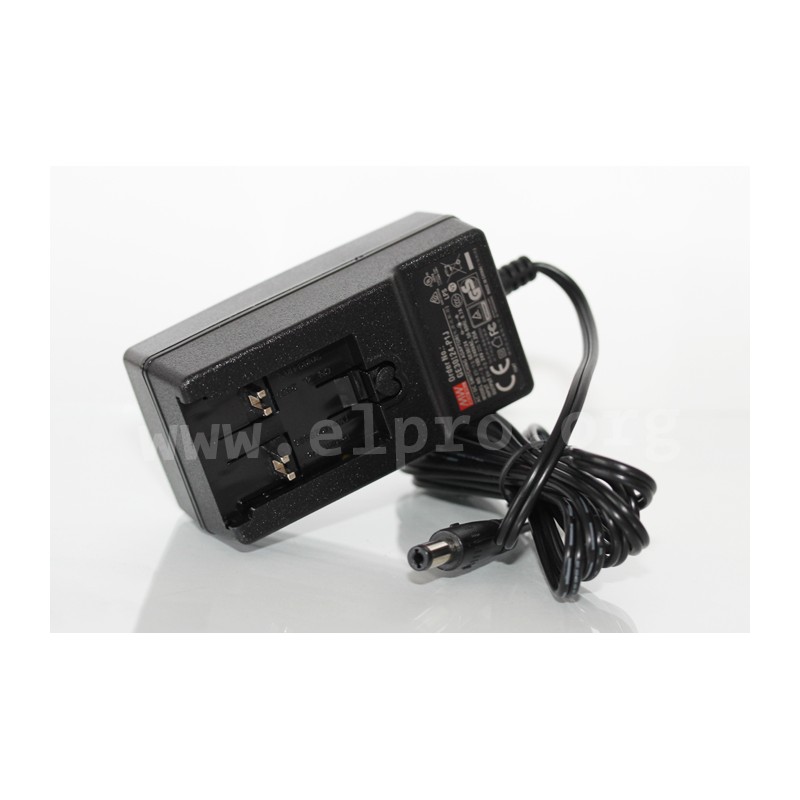

Mean Well plug-in power supply series GE30I

Plug-in switching power supplies in a plastic housing with 30W, insulation class II, energy efficiency Level VI, a low no-load power and a universal input. These devices are suitable for interchangeable AC plugs (must be ordered separately) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have an LED indicator for power on and comply with EN62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: GE30I12-P1J, GE30I15-P1J, GE30I18-P1J and GE30I24-P1J.

  • single output
  • output: 30W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 80A
  • no-load power: <0,075W
  • cable length: 1,5m
  • output plug: 2,1x5,5mm
  • operating temperature: -10 to +50°C
  • weight: 134g

Matching input plugs

GE30I24-P1J

GE30I24-P1J

104716 GE30I24-P1J GE30I24-P1J 4711287470184 Mean Well plug-in power supply series GE30I. Plug-in switching power supplies in a plastic housing with 30W, insulation class II, energy efficiency Level VI, a low no-load power and a&nbsp;universal input. These devices are suitable for interchangeable AC plugs (must be ordered separately) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have an LED&nbsp;indicator for power on and comply&nbsp;with&nbsp;EN62368-1, EN55032 class B as well as EN61000-4-2. We offer the&nbsp;following types of this Mean Well series:&nbsp;GE30I12-P1J, GE30I15-P1J, GE30I18-P1J and GE30I24-P1J. single output output: 30W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 80A no-load power: &lt;0,075W cable length: 1,5m output plug: 2,1x5,5mm operating temperature: -10 to +50&deg;C weight: 134g Matching input plugs

Specifications

manufacturer
Manufacturer's name GE30I24-P1J
GTIN 4711287470184
Output voltage [V] 24
Efficiency [%] 87
Output current range [A] 0...1,25
Output voltage tolerance: [%] 3
Output power [W] 30
Ripple [mVp-p] 240
Data Sheet

Unit price

14,19 €

Volume discounts

Quantity Unit price
50 + 13,39 €

Stock: 1094
Further delivery:
CW 40/2024
