GP50A13D-R1B

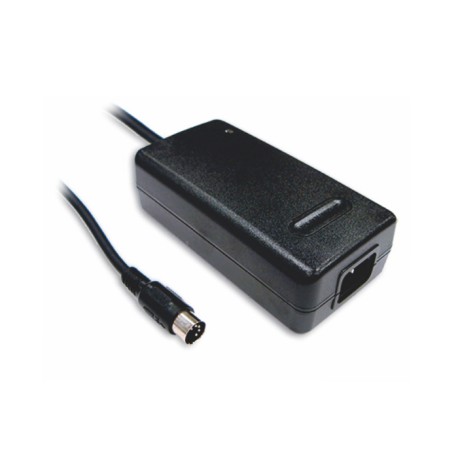

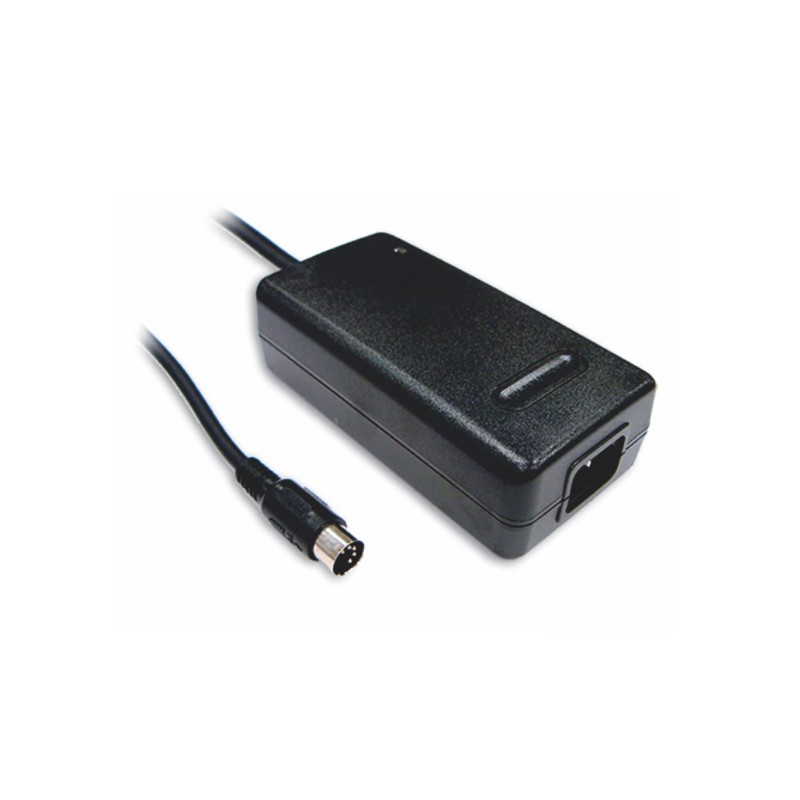

Mean Well external power supply series GP50A

External switching power supplies in a plastic housing (UL94V-0) with 50W, energy efficiency Level VI, insulation class I and a universal input. These devices have a low no-load power and are protected against overload, overvoltage as well as short circuit. They have three output channels and comply with EISA 2007/DoE, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GP50A13A-R1B, GP50A13D-R1B and GP50A14E-R1B.

  • triple output
  • output: 46,5 to 50W
  • input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC
  • maximal input inrush current: 45A
  • no-load power: <0,3W
  • cable length: 1m
  • input plug: C14 (EN60320-1)
  • output plug: R1B 5-pole
  • operating temperature: -20 to +70°C
  • weight: 550g
GP50A13D-R1B, Mean Well external switching power supplies, 50W, triple output, energy efficiency Level VI, GP50A series

GP50A13D-R1B

245011 GP50A13D-R1B GP50A13D-R1B 4711287468716 Mean Well external power supply series GP50A. External switching power supplies in a plastic housing (UL94V-0) with 50W, energy efficiency Level VI, insulation class I and a universal input. These devices have a low no-load power and are protected against overload, overvoltage as well as short circuit. They have three output channels and comply with EISA 2007/DoE, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GP50A13A-R1B, GP50A13D-R1B and GP50A14E-R1B. triple output output: 46,5 to 50W input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC maximal input inrush current: 45A no-load power: &lt;0,3W cable length: 1m input plug: C14 (EN60320-1) output plug: R1B 5-pole operating temperature: -20 to +70°C weight: 550g

Specifications

manufacturer
Manufacturer's name GP50A13D-R1B
GTIN 4711287468716
Output voltage [V] 5/12/-12
Efficiency [%] 84
Output current [A] 0...4/0,3......
Output voltage tolerance: [%] 5/3/-5,+8
Output power [W] 50
Ripple [mVp-p] 50/150/100
Data Sheet

Unit price

49,29 €

Stock: 0
Further delivery:
CW 41/2024
