GSM36B24-P1J

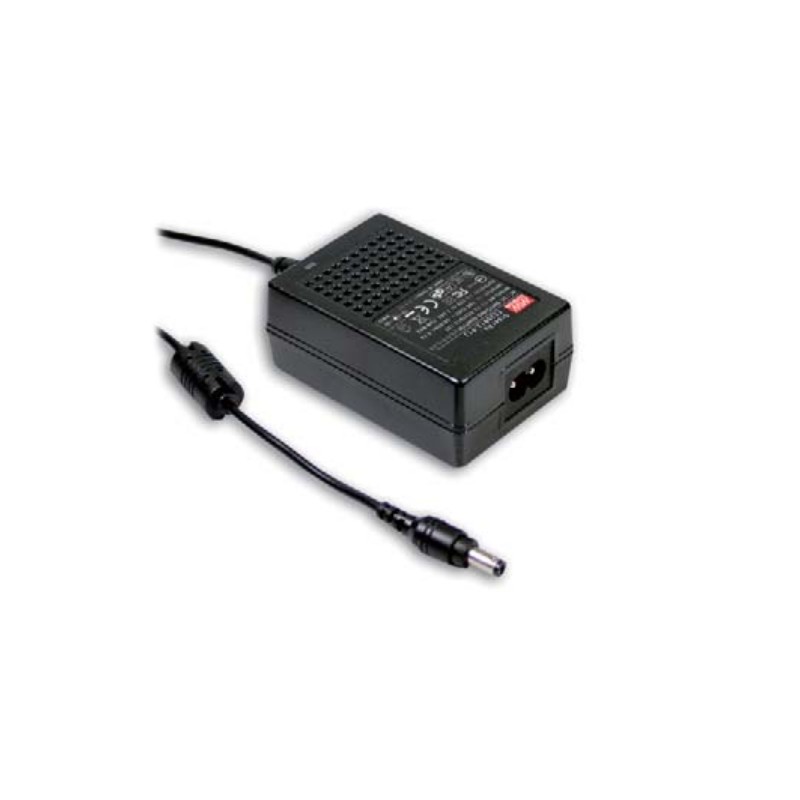

Mean Well desktop power supply series GSM36B

External switching power supplies in a plastic housing (UL94V-0) with 36W, protection class II, a low no-load power (<0,1W) and energy efficiency Level VI. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have a 2 pole AC inlet according to IEC320-C8 and comply with EN62368-1, EN60601-1, EN60601-1-11 as well as EN55011 class B. We offer the following types of this Mean Well series: GSM36B05-P1J, GSM36B07-P1J, GSM36B09-P1J, GSM36B12-P1J, GSM36B15-P1J, GSM36B18-P1J, GSM36B24-P1J and GSM36B48-P1J.

  • single output
  • output: 22,5 to 36W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <50µA
  • overload protection: 105 to 170%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -25 to +60°C
  • dimensions: 79x54x33mm
  • weight: 235g

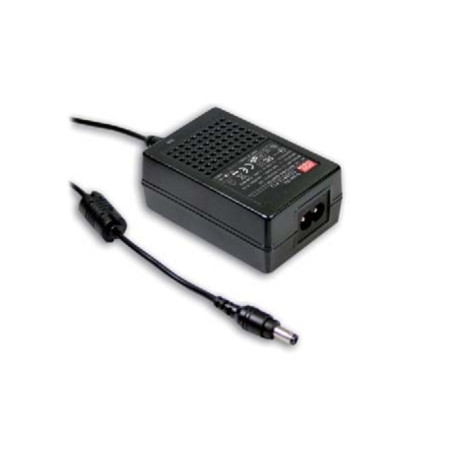

GSM36B24-P1J, Mean Well external switching power supplies, 36W, for medical technology, energy efficiency Level VI, GSM36B serie

GSM36B24-P1J

245841 GSM36B24-P1J GSM36B24-P1J 4711287430997 Mean Well desktop power supply series GSM36B. External switching power supplies in a plastic housing (UL94V-0) with 36W, protection class II, a low no-load power (&lt;0,1W) and energy efficiency Level VI. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have a 2 pole AC inlet according to IEC320-C8 and comply with EN62368-1, EN60601-1, EN60601-1-11 as well as EN55011 class B. We offer the following types of this Mean Well series: GSM36B05-P1J, GSM36B07-P1J, GSM36B09-P1J, GSM36B12-P1J, GSM36B15-P1J, GSM36B18-P1J, GSM36B24-P1J and GSM36B48-P1J. single output output: 22,5 to 36W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 55A leakage current: &lt;50µA overload protection: 105 to 170% withstand voltage I/P-O/P: 4000V AC operating temperature: -25 to +60°C dimensions: 79x54x33mm weight: 235g

Specifications

manufacturer
Manufacturer's name GSM36B24-P1J
GTIN 4711287430997
Output voltage [V] 24
Efficiency [%] 87
Output current [A] 1,5
Output voltage tolerance: [%] ±2
Output power [W] 36
Ripple [mVp-p] 180
Data Sheet

Unit price

14,89 €

Volume discounts

Quantity Unit price
50 + 13,89 €

Stock: 0
Next incoming goods:
CW 28/2024
20 units

Further delivery:
CW 35/2024
