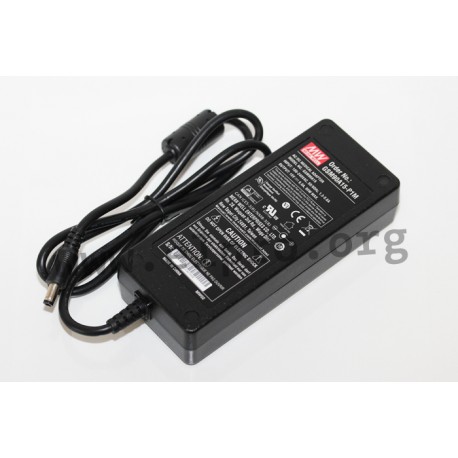

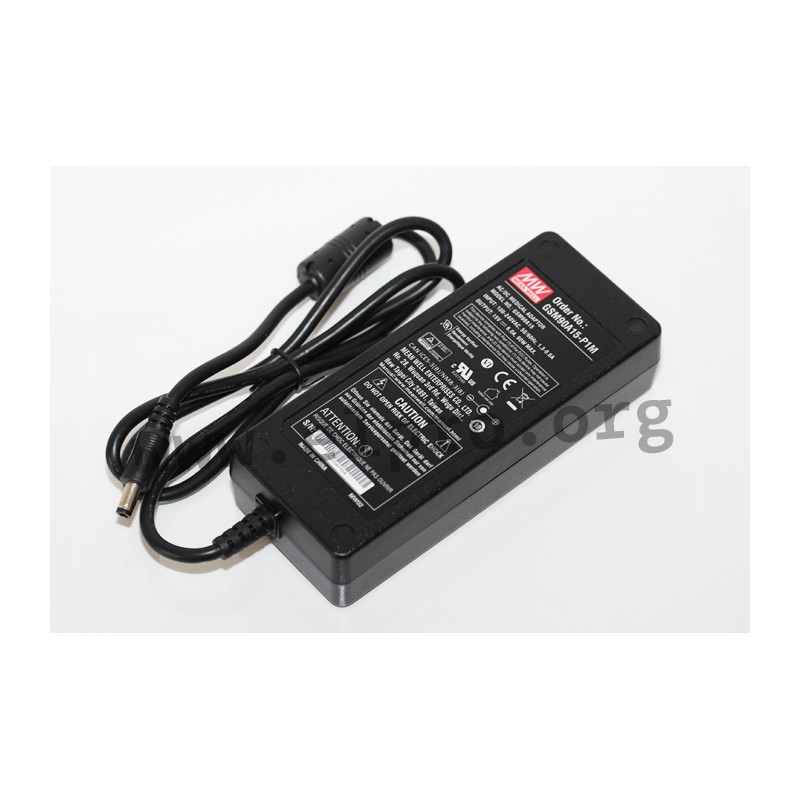

GSM90A15-P1M

Mean Well desktop power supply series GSM90A

Desktop switching power supplies with 90W, insulation class I, a universal input, energy efficiency Level VI and an LED indicator for power on. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 130.000 hours and comply with EN60601-1, EN55011 Klasse B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM90A12-P1M, GSM90A15-P1M, GSM90A19-P1M, GSM90A24-P1M and GSM90A48-P1M.

  • single output
  • output: 80 to 90W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 65A
  • no-load power: <0,15W
  • input plug: C14 (IEC320-C14)
  • output plug: 2,5x5,5mm
  • operating temperature: -30 to +70°C
  • weight: 450g
GSM90A15-P1M

GSM90A15-P1M

108382 GSM90A15-P1M GSM90A15-P1M 4711287430638 Mean Well desktop power supply series&nbsp;GSM90A. Desktop switching power supplies with 90W, insulation class I, a universal input,&nbsp;energy efficiency Level VI and an LED&nbsp;indicator for power on. These devices are suitable for medical technology applications (2xMOPP) and are&nbsp;protected against overload, overtemperature,&nbsp;short circuit as well as overvoltage. They have a&nbsp;service life of more than 130.000 hours and&nbsp;comply with&nbsp;EN60601-1, EN55011 Klasse B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;GSM90A12-P1M, GSM90A15-P1M, GSM90A19-P1M, GSM90A24-P1M and GSM90A48-P1M. single output output: 80 to 90W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 65A no-load power: &lt;0,15W input plug: C14 (IEC320-C14) output plug: 2,5x5,5mm operating temperature: -30 to +70&deg;C weight: 450g

Specifications

manufacturer
Manufacturer's name GSM90A15-P1M
GTIN 4711287430638
Output voltage [V] 15
Efficiency [%] 89
Output current range [A] 0...6
Output voltage tolerance: [%] 5
Output power [W] 90
Ripple [mVp-p] 150
Data Sheet

Unit price

28,69 €

Volume discounts

Quantity Unit price
50 + 26,69 €

Stock: 17
Further delivery:
CW 37/2024
