GST25A24-P1J

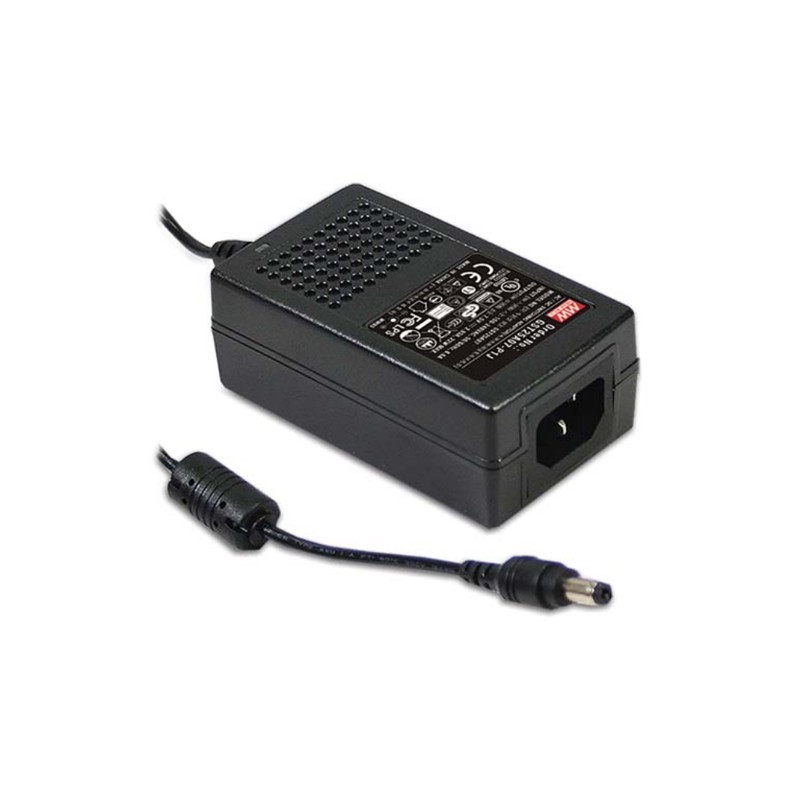

Mean Well desktop power supply series GST25A

External switching power supplies in a plastic housing (UL94V-0) with 25W, a universal input, energy efficiency Level VI, a low no-load power (<0,075W) and protection class I. These devices have a 3 pole AC inlet in compliance with IEC320-C14, a LPS certification and are protected against overload, short circuit as well as overvoltage. They have an LED indicator and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST25A05-P1J, GST25A07-P1J, GST25A09-P1J, GST25A12-P1J, GST25A15-P1J, GST25A18-P1J, GST25A24-P1J, GST25A28-P1J and GST25A48-P1J.

  • single output
  • output: 20 to 25W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 65A
  • leakage current: <0,75mA
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 4242V DC
  • withstand voltage I/P-FG: 2121V DC
  • operating temperature: -30 to +70°C
  • dimensions: 93x54x36mm
  • weight: 209g

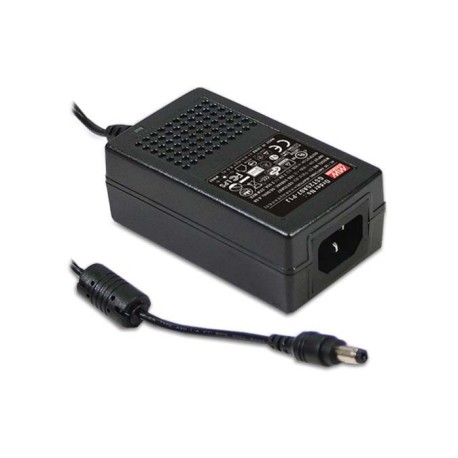

GST25A24-P1J, Mean Well external switching power supplies, 25W, energy efficiency Level VI, GST25A series

GST25A24-P1J

245833 GST25A24-P1J GST25A24-P1J 4711287429014 Mean Well desktop power supply series&nbsp;GST25A. External switching power supplies in a plastic housing (UL94V-0) with 25W, a universal input, energy efficiency Level VI,&nbsp;a low no-load power (&lt;0,075W) and protection class I. These devices have a 3 pole AC inlet&nbsp;in compliance with IEC320-C14, a LPS certification and are protected against overload, short circuit as well as overvoltage. They have an LED indicator and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST25A05-P1J, GST25A07-P1J, GST25A09-P1J, GST25A12-P1J, GST25A15-P1J, GST25A18-P1J, GST25A24-P1J, GST25A28-P1J and GST25A48-P1J. single output output: 20 to 25W input voltage: 85 to 264V AC (47 to 63Hz) maximal input inrush current: 65A leakage current: &lt;0,75mA overload protection: 110 to 150% withstand voltage I/P-O/P: 4242V DC withstand voltage I/P-FG: 2121V DC operating temperature: -30 to +70&deg;C dimensions: 93x54x36mm weight: 209g

Specifications

manufacturer
Manufacturer's name GST25A24-P1J
GTIN 4711287429014
Output voltage [V] 24
Efficiency [%] 88
Output current [A] 1,04
Output voltage tolerance: [%] ±2
Output power [W] 25
Ripple [mVp-p] 150
