GST25B28-P1J

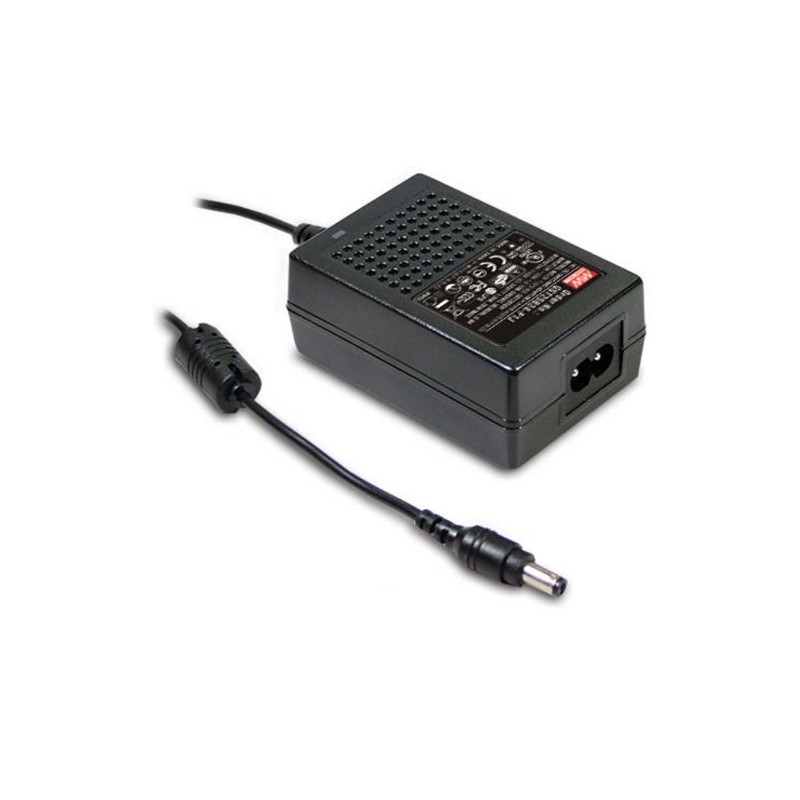

Mean Well desktop power supply series GST25B

External switching power supplies in a plastic housing (UL94V-0) with 25W, a low no-load power (<0,075W), protection class II, a 2-pole AC inlet (IEC320-C8), a universal input and energy efficiency Level VI. These devices have an LED indicator for power on and are protected against overload, overvoltage as well as short circuit. They pass LPS and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST25B05-P1J, GST25B07-P1J, GST25B09-P1J, GST25B12-P1J, GST25B15-P1J, GST25B18-P1J, GST25B24-P1J, GST25B28-P1J and GST25B48-P1J.

  • single output
  • output: 20 to 25W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 65A
  • leakage current: <0,25mA
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 4242V DC
  • operating temperature: -30 to +70°C
  • dimensions: 79x54x33mm
  • weight: 191,5g

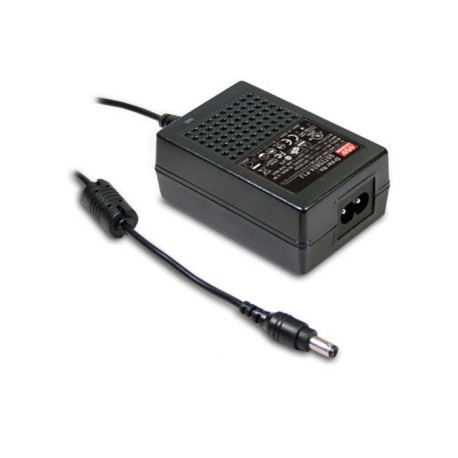

GST25B28-P1J, Mean Well external switching power supplies, 25W, energy efficiency Level VI, GST25B series

GST25B28-P1J

246211 GST25B28-P1J GST25B28-P1J 4711287429632 Mean Well desktop power supply series GST25B. External switching power supplies in a plastic housing (UL94V-0) with 25W, a low no-load power (&lt;0,075W), protection class II, a 2-pole AC inlet (IEC320-C8), a universal input and energy efficiency Level VI. These devices have an LED indicator for power on and are protected against overload, overvoltage as well as short circuit. They pass LPS and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST25B05-P1J, GST25B07-P1J, GST25B09-P1J, GST25B12-P1J, GST25B15-P1J, GST25B18-P1J, GST25B24-P1J, GST25B28-P1J and GST25B48-P1J. single output output: 20 to 25W input voltage: 85 to 264V AC (47 to 63Hz) maximal input inrush current: 65A leakage current: &lt;0,25mA overload protection: 110 to 150% withstand voltage I/P-O/P: 4242V DC operating temperature: -30 to +70°C dimensions: 79x54x33mm weight: 191,5g

Specifications

manufacturer
Manufacturer's name GST25B28-P1J
GTIN 4711287429632
Output voltage [V] 28
Efficiency [%] 88
Output current [A] 0,89
Output voltage tolerance: [%] ±2
Output power [W] 25
Ripple [mVp-p] 150
Data Sheet

Unit price

13,89 €

Stock: 0
Further delivery:
CW 35/2024
