GSV30I48-P1J

Mean Well LED driver series GSV30I

LED plug-in switching power supplies with 30W, a constant voltage, protection class II and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery). They are suitable for LED lighting applications, have interchangeable input plugs and comply with EN61347-1. We offer the following types of this Mean Well series: GSV30I12-P1J, GSV30I24-P1J and GSV30I48-P1J.

  • single output
  • output: 30W
  • input voltage: 180 to 264V AC (47 to 63Hz), 255 to 373V DC
  • maximal input inrush current: 20A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 75,5x39,1x56,2mm
  • weight: 166g

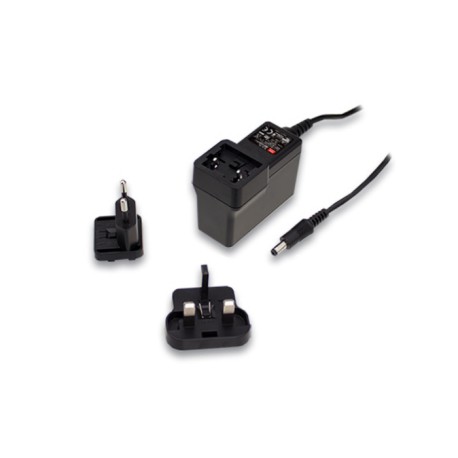

GSV30I48-P1J, Mean Well LED plug-in drivers, 30W, constant voltage, interchangeable input plugs, GSV30I series

GSV30I48-P1J

244881 GSV30I48-P1J GSV30I48-P1J Mean Well LED driver series GSV30I. LED plug-in switching power supplies with 30W, a constant voltage, protection class II and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery). They are suitable for LED lighting applications, have interchangeable input plugs and comply with EN61347-1. We offer the following types of this Mean Well series: GSV30I12-P1J, GSV30I24-P1J and GSV30I48-P1J. single output output: 30W input voltage: 180 to 264V AC (47 to 63Hz), 255 to 373V DC maximal input inrush current: 20A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +50°C dimensions: 75,5x39,1x56,2mm weight: 166g

Specifications

manufacturer
Manufacturer's name GSV30I48-P1J
Output voltage [V] 48
Efficiency [%] 89
Output current [A] 0,625
Output voltage tolerance: [%] 2
Output power [W] 30
Ripple [mVp-p] 5500
Data Sheet

Unit price

12,79 €

Stock: 0
Further delivery:
CW 16/2026

Minimum order quantity 200 units or
multiples of 200.
