HBG-160-48AB

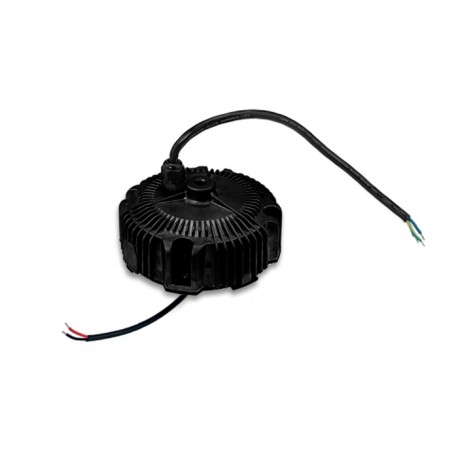

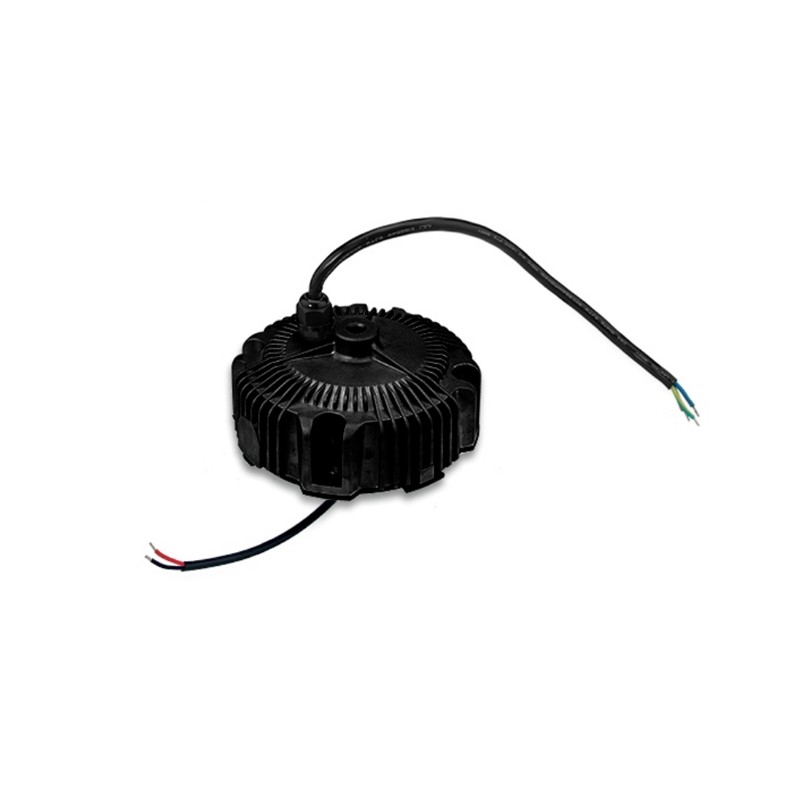

Mean Well LED driver series HBG-160

LED drivers in a circular metal housing (IP65) with 160W, a constant current/voltage and a 3 in 1 dimming function. These SELV compliant devices have a built-in active PFC function, a potentiometer for adjusting the current limiting and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HBG-160-24AB, HBG-160-36AB, HBG-160-48AB and HBG-160-60AB.

  • single output
  • output: 156 to 158,4
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø151,68x66,5mm
  • weight: 1530g
HBG-160-48AB, Mean Well LED drivers, 160W, IP65, CV and CC (mixed mode), dimmable, adjustable, circular housing, HBG-160 series

HBG-160-48AB

244615 HBG-160-48AB HBG-160-48AB 4711287447612 Mean Well LED driver series HBG-160. LED drivers in a circular metal housing (IP65) with 160W, a constant current/voltage and a 3 in 1 dimming function. These SELV compliant devices have a built-in active PFC function, a potentiometer for adjusting the current limiting and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HBG-160-24AB, HBG-160-36AB, HBG-160-48AB and HBG-160-60AB. single output output: 156 to 158,4 input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø151,68x66,5mm weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-160-48AB
GTIN 4711287447612
Output voltage [V] 48
Efficiency [%] 93
Output current [A] 3,3
Output voltage tolerance: [%] 2
Output power [W] 158,4
Ripple [mVp-p] 300
Data Sheet

Unit price

61,99 €

Stock: 0
Further delivery:
CW 36/2024
