HBG-200-36DA

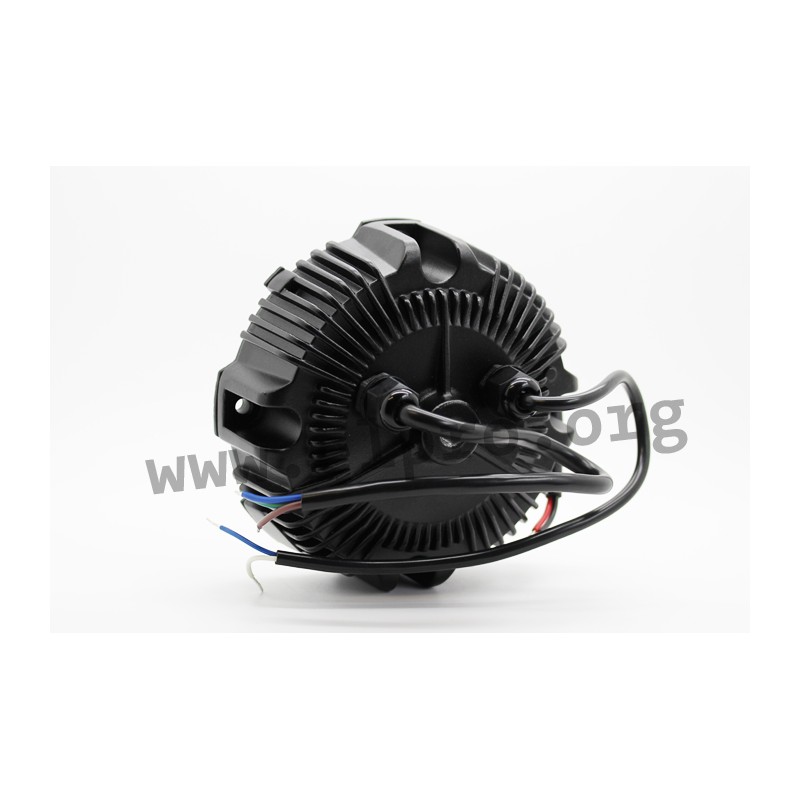

Mean Well LED driver series HBG-200

LED drivers in an aluminium housing (circular shape, IP67) with a universal input, 200W and a DALI interface. These dimmable devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HBG-200-36DA, HBG-200-48DA and HBG-200-60DA.

  • single output
  • output: 196,8 to 198W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 85A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø151,68x66,5mm
  • weight: 1530g

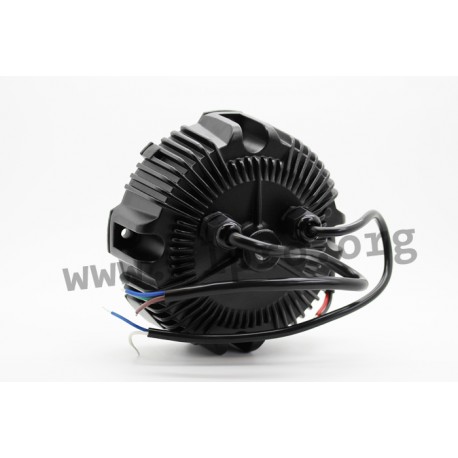

HBG-200-36DA, 200 watts, IP67, circular shape, dimmable, DALI interface, HBG-200 series by Meanwell

HBG-200-36DA

111795 HBG-200-36DA HBG-200-36DA 4711287447711 Mean Well LED driver series HBG-200. LED drivers in an aluminium housing (circular shape, IP67) with a universal input, 200W and a DALI interface. These dimmable devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HBG-200-36DA, HBG-200-48DA and HBG-200-60DA. single output output: 196,8 to 198W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 85A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø151,68x66,5mm weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-200-36DA
GTIN 4711287447711
Output voltage [V] 36
Efficiency [%] 92
Output voltage tolerance: [%] 2
Output power [W] 198
Ripple [mVp-p] 250
Output current adjustment [A] 3,3...5,5
Data Sheet

Unit price

63,99 €

Volume discounts

Quantity Unit price
50 + 61,89 €

Stock: 14
Further delivery:
CW 33/2024
