HBG-200-48B

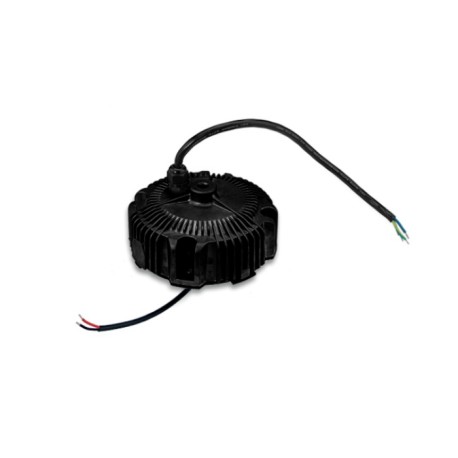

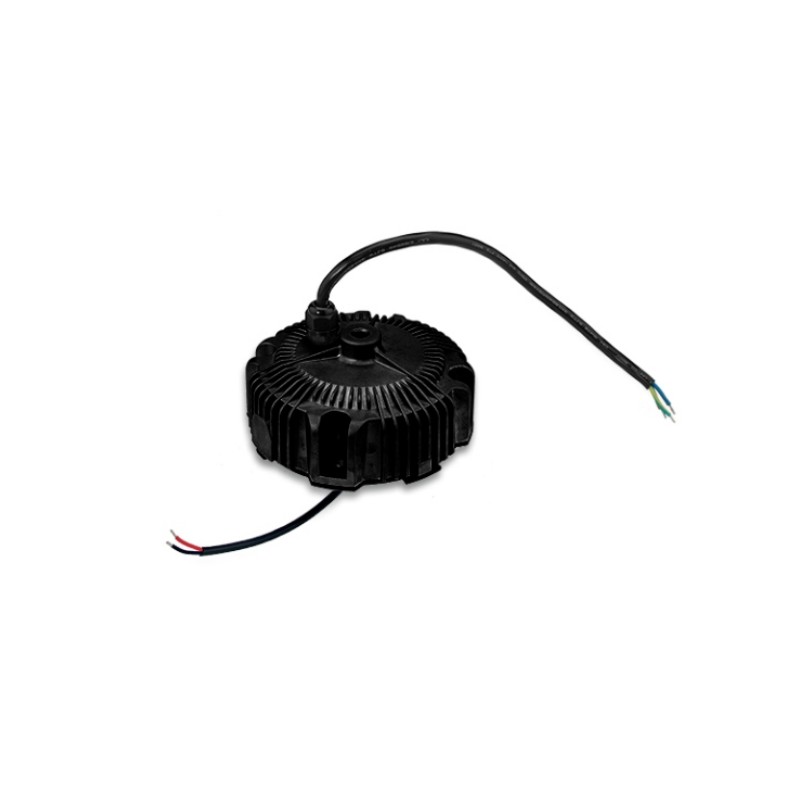

Mean Well LED driver series HBG-200

LED drivers in an aluminium housing (circular shape, IP67) with a 3 in 1 dimming function (constant current 0 to 10V DC, PWM, potentiometer), 200W and a universal input. These devices have a built-in active PFC function and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: HBG-200-36B and HBG-200-60B.

  • single output
  • output: 198W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 85A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø151,68x66,5mm
  • weight: 1530g
HBG-200-48B, Mean Well LED drivers, 200W, IP67, CV and CC mixed mode, dimmable, circular housing, HBG-200 series

HBG-200-48B

244641 HBG-200-48B HBG-200-48B 4711287447759 Mean Well LED driver series HBG-200. LED drivers in an aluminium housing (circular shape, IP67) with a 3 in 1 dimming function (constant current 0 to 10V DC, PWM, potentiometer), 200W and a universal input. These devices have a built-in active PFC function and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: HBG-200-36B and HBG-200-60B. single output output: 198W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 85A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø151,68x66,5mm weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-200-48B
GTIN 4711287447759
Output voltage [V] 48
Ripple [Vp-p] 250
Efficiency [%] 93
Output voltage tolerance: [%] 2
Output power [W] 196,8
Ripple [mVp-p] 250
Output current adjustment [A] 2,46...4,1
Data Sheet

Unit price

67,39 €

Stock: 0
Further delivery:
CW 34/2024
