HBG-240-60AB

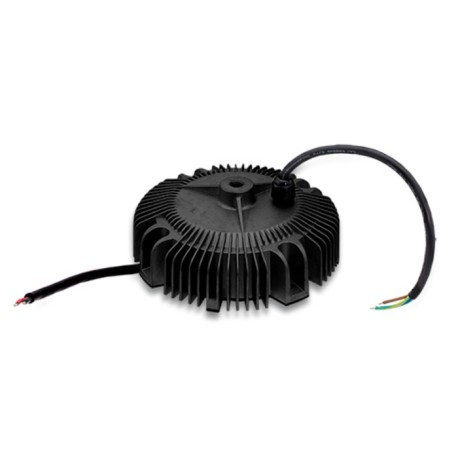

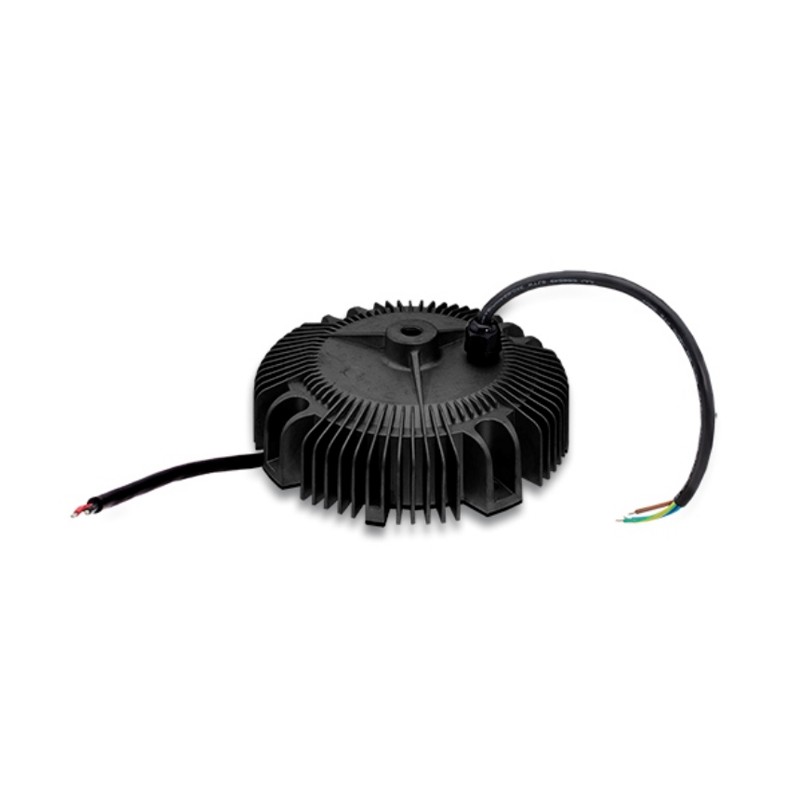

Mean Well LED driver series HBG-240

LED drivers in a circular housing (IP65) with 240W, a 3 in 1 dimming function and a constant current/voltage. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, have a built-in potentiometer for adjusting the output current and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HBG-240-24AB, HBG-240-36AB, HBG-240-48AB and HBG-240-60AB.

  • single output
  • output: 240W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +80°C
  • dimensions: Ø191,5x69mm
  • weight: 2100g
HBG-240-60AB, Mean Well LED drivers, 240W, IP65, CV and CC (mixed mode), dimmable, adjustable, circular housing, HBG-240 series

HBG-240-60AB

244657 HBG-240-60AB HBG-240-60AB 4711287447995 Mean Well LED driver series HBG-240. LED drivers in a circular housing (IP65) with 240W, a 3 in 1 dimming function and a constant current/voltage. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, have a built-in potentiometer for adjusting the output current and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HBG-240-24AB, HBG-240-36AB, HBG-240-48AB and HBG-240-60AB. single output output: 240W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +80°C dimensions: Ø191,5x69mm weight: 2100g

Specifications

manufacturer
Manufacturer's name HBG-240-60AB
GTIN 4711287447995
Output voltage [V] 60
Efficiency [%] 93,5
Output current [A] 2,4...4
Output voltage tolerance: [%] 2
Output power [W] 240
Ripple [mVp-p] 350
Data Sheet

Unit price

68,99 €

Stock: 0
Further delivery:
CW 05/2026
