HBG-240P-36A

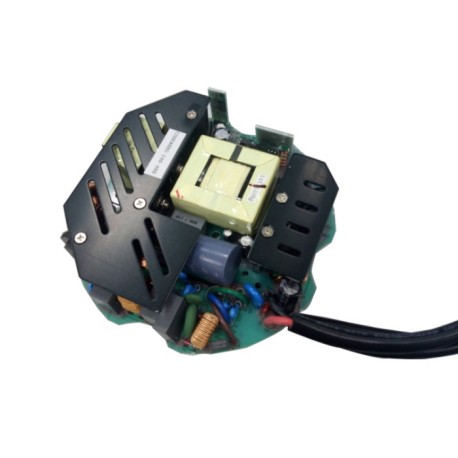

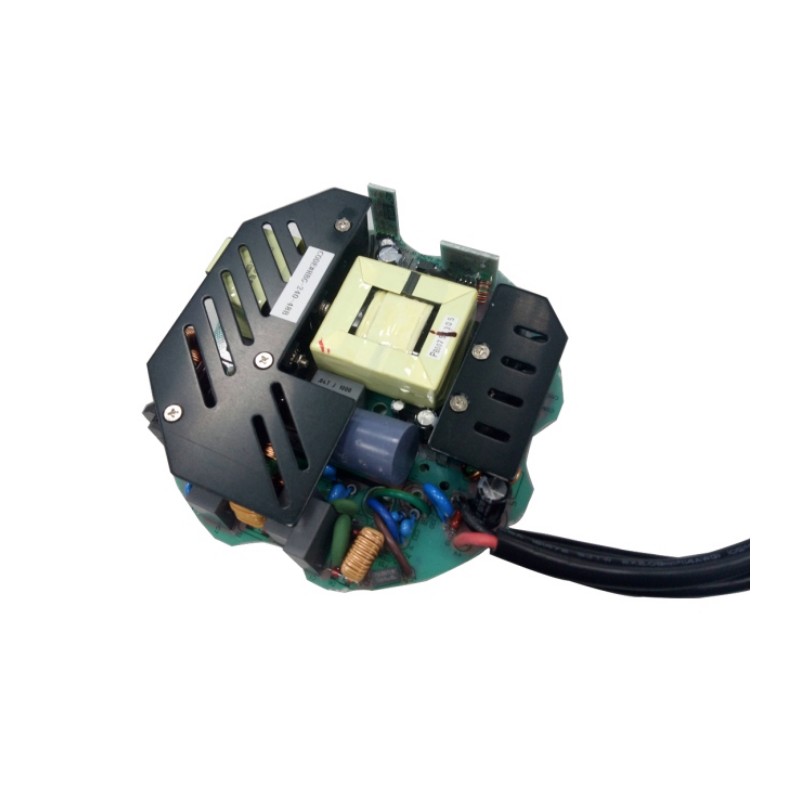

Mean Well LED driver series HBG-240P

Open frame LED drivers with 240W, a circular shape, a constant current/voltage and a dimming function (HBG-240P-_B) resp. an adjustable output current (HBG-240P-_A). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C as well as EN55015. We offer the following types of this Mean Well series: HBG-240P-36A, HBG-240P-48A, HBG-240P-60A, HBG-240P-36B, HBG-240P-48B and HBG-240P-60B.

  • single output
  • output: 240 to 241,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +45°C
  • dimensions: Ø124,6x34mm
  • weight: 620g
HBG-240P-36A, Mean Well LED drivers, 240W, CV and CC (mixed mode), circular housing, open frame (PCB), HBG-240P series

HBG-240P-36A

244930 HBG-240P-36A HBG-240P-36A 4711287448237 Mean Well LED driver series HBG-240P. Open frame LED drivers with 240W, a circular shape, a constant current/voltage and a dimming function (HBG-240P-_B) resp. an adjustable output current (HBG-240P-_A). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C as well as EN55015. We offer the following types of this Mean Well series: HBG-240P-36A, HBG-240P-48A, HBG-240P-60A, HBG-240P-36B, HBG-240P-48B and HBG-240P-60B. single output output: 240 to 241,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +45°C dimensions: Ø124,6x34mm weight: 620g

Specifications

manufacturer
Manufacturer's name HBG-240P-36A
GTIN 4711287448237
Output voltage [V] 21,6...36
Efficiency [%] 92,5
Output current [A] 6,7
Output voltage tolerance: [%] 2
Output power [W] 241,2
Ripple [mVp-p] 250
Data Sheet

Unit price

61,09 €

Stock: 0
Further delivery:
CW 36/2024
