HBG-60-1400

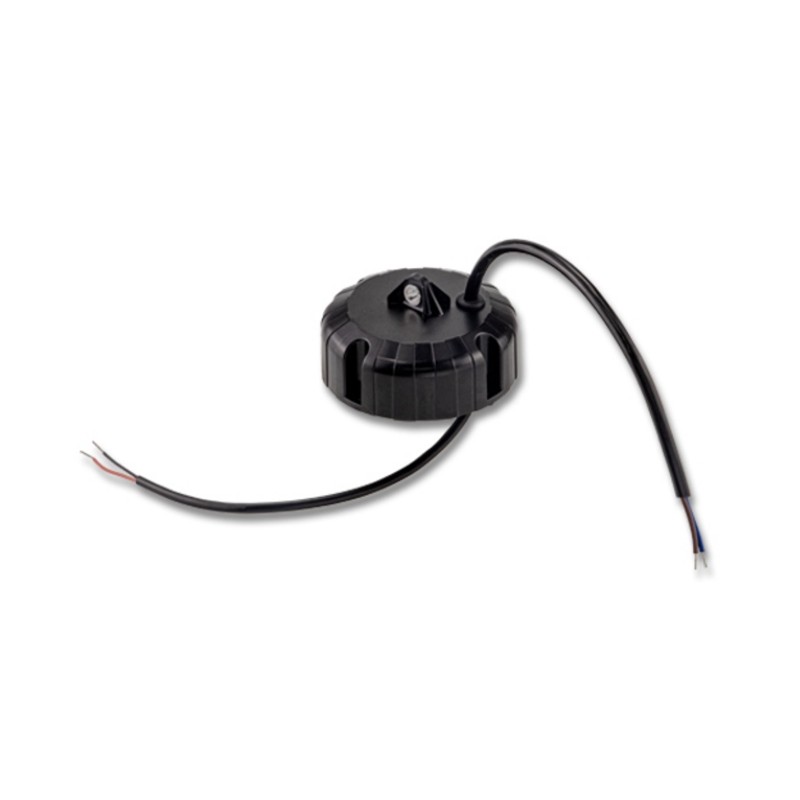

Mean Well LED driver series HBG-60

LED drivers in a round plastic housing with 60W, a constant current and a universal input. These devices are suitable for LED lighting applications and are not dimmable. They are protected against overload, overvoltage as well as short circuit and comply with UL8750, EN61347-1 as well as EN62384. We offer the following types of this Mean Well series: HBG-60-1050, HBG-60-1400 and HBG-60-2100.

  • single output
  • output: 57,75 to 60,9W
  • input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø110x60,5mm
  • weight: 500g

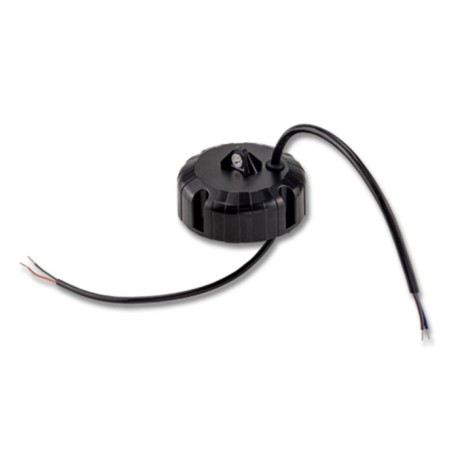

HBG-60-1400, Mean Well LED drivers, 60W, constant current, circular housing, HBG-60 series

HBG-60-1400

244548 HBG-60-1400 HBG-60-1400 4711287447216 Mean Well LED driver series HBG-60. LED drivers in a round plastic housing with 60W, a constant current and a universal input. These devices are suitable for LED lighting applications and are not dimmable. They are protected against overload, overvoltage as well as short circuit and comply with UL8750, EN61347-1 as well as EN62384. We offer the following types of this Mean Well series: HBG-60-1050, HBG-60-1400 and HBG-60-2100. single output output: 57,75 to 60,9W input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +85°C dimensions: Ø110x60,5mm weight: 500g

Specifications

manufacturer
Manufacturer's name HBG-60-1400
GTIN 4711287447216
Output voltage [V] 28...43
Output current tolerance [%] 5
Efficiency [%] 89
Output power [W] 60,2
Ripple [mVp-p] 4000
Output current [mA] 1400
Data Sheet

Unit price

26,29 €

Stock: 0
Further delivery:
CW 36/2024
