HDR-15-15

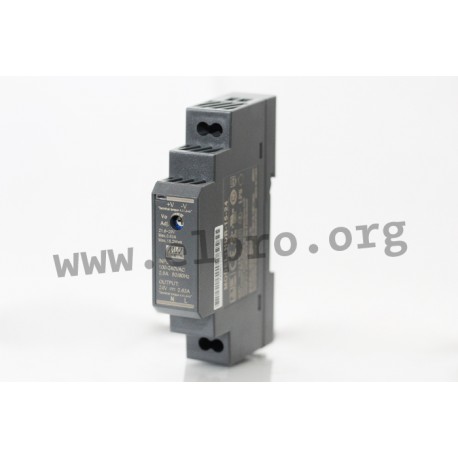

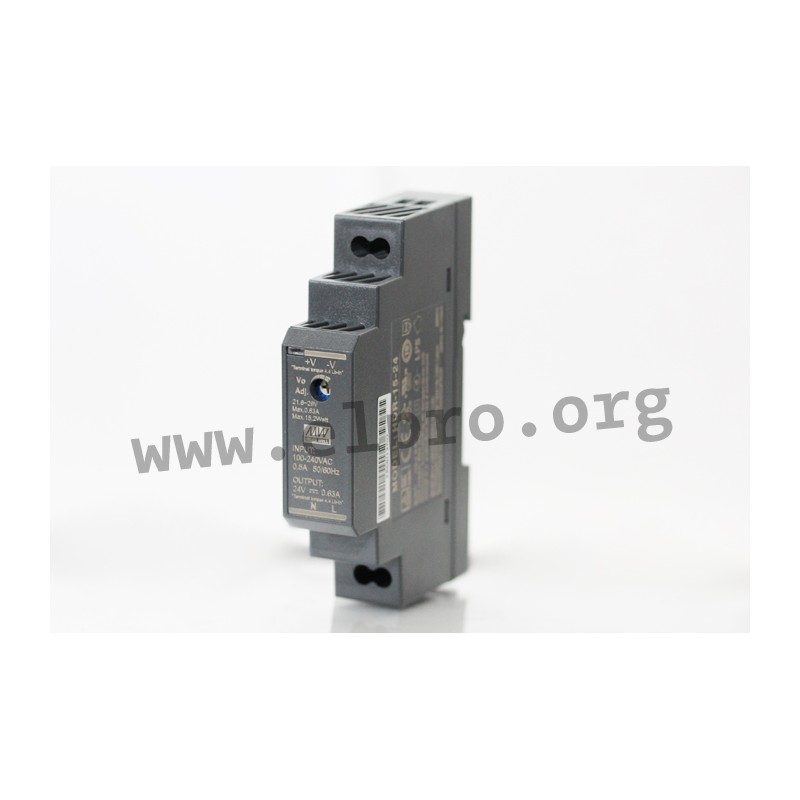

Mean Well DIN rail power supply series HDR-15

Switching power supplies with 15W, a universal input, a low no-load power, insulation class II, an LED indicator for power on and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very slim (17,5mm width) and comply with UL/EN62368-1, EN61558-2-16, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-15-5, HDR-15-12, HDR-15-15, HDR-15-24 and HDR-15-48.

  • single output
  • output: 12 to 15,4W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 45A
  • overload protection: 110 to 145%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +70°C
  • dimensions: 17,5x90x54,4mm
  • weight: 78g

HDR-15-15

108225 HDR-15-15 HDR-15-15 4711287421636 Mean Well DIN rail power supply series HDR-15. Switching power supplies with 15W, a universal input, a low no-load power, insulation class II, an LED indicator for power on and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very slim (17,5mm width) and comply with UL/EN62368-1, EN61558-2-16, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-15-5, HDR-15-12, HDR-15-15, HDR-15-24 and HDR-15-48. single output output: 12 to 15,4W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 45A overload protection: 110 to 145% withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +70°C dimensions: 17,5x90x54,4mm weight: 78g

Specifications

manufacturer
Manufacturer's name HDR-15-15
GTIN 4711287421636
Output voltage [V] 15
Efficiency [%] 85,5
Output current range [A] 0...1
Output voltage tolerance: [%] 1
Output power [W] 15
Ripple [mVp-p] 120
Data Sheet

Unit price

8,69 €

Volume discounts

Quantity Unit price
50 + 8,19 €

Stock: 715
Next incoming goods:
CW 23/2024
1600 units


Further delivery:
CW 29/2024
