HEP-1000-48

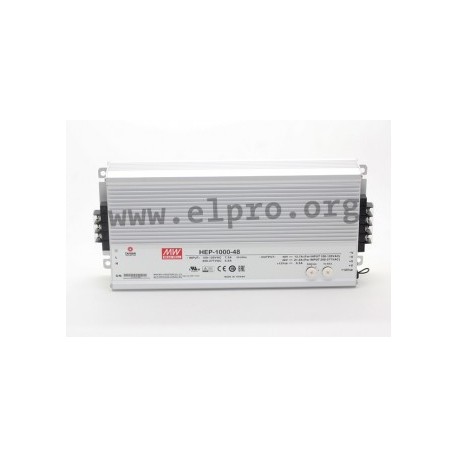

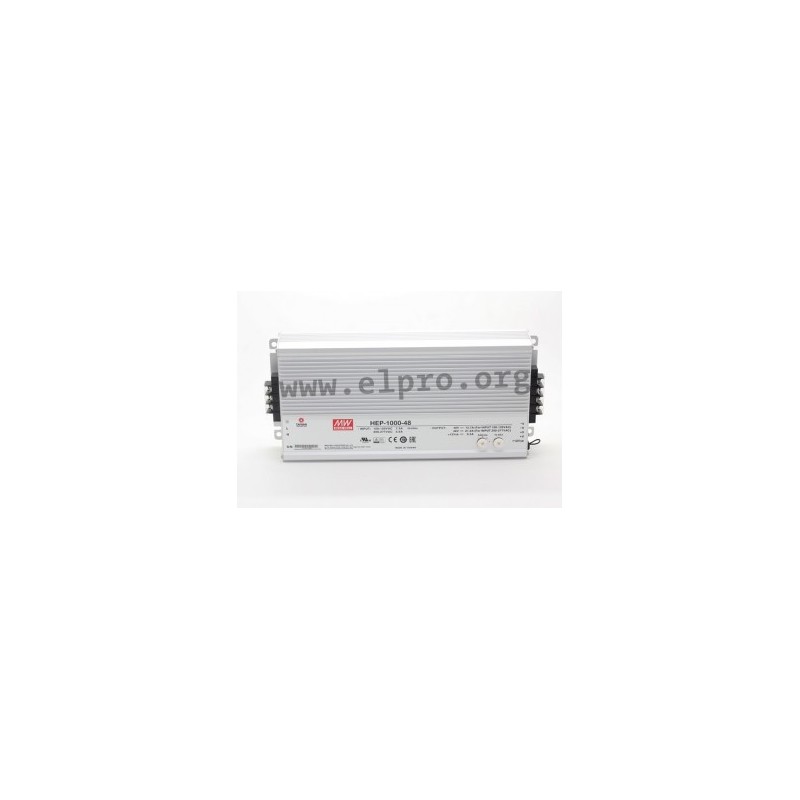

Mean Well power supply series HEP-1000

Switching power supplies in an enclosed aluminium housing with 1000W, a PMBus interface, a remote ON/OFF control, an LED indicator for power on, a fanless design and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HEP-1000-24, HEP-1000-48 and HEP-1000-100.

  • single output
  • output: 1000 to 1008W
  • input voltage: 90 to 305V AC (47 to 63Hz), 250 to 431V DC
  • maximal input inrush current: 40A
  • leakage current: <0,75mA
  • overcurrent protection: 105 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -40 to +70°C
  • weight: 4000g

HEP-1000-48

114304 HEP-1000-48 HEP-1000-48 4711287433509 Mean Well power supply series&nbsp;HEP-1000. Switching power supplies in an enclosed&nbsp;aluminium housing with 1000W, a PMBus interface, a remote ON/OFF control, an LED indicator for power on, a fanless design and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for&nbsp;harsh environments and comply with&nbsp;EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;HEP-1000-24, HEP-1000-48 and HEP-1000-100. single output output: 1000 to 1008W input voltage: 90 to 305V AC (47 to 63Hz), 250 to 431V DC maximal input inrush current: 40A leakage current: &lt;0,75mA overcurrent protection: 105 to 125% withstand voltage I/P-O/P: 3000V AC withstand voltage&nbsp;I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -40 to +70&deg;C weight: 4000g

Specifications

manufacturer
Manufacturer's name HEP-1000-48
GTIN 4711287433509
Output voltage [V] 48
Efficiency [%] 96
Output current [A] 21
Output voltage tolerance: [%] 1
Output power [W] 1008
Ripple [mVp-p] 250
Output voltage adjustment [V] 48...60
Data Sheet

Unit price

337,49 €

Volume discounts

Quantity Unit price
50 + 337,49 €

Stock: 13
Further delivery:
CW 29/2024
