HLG-100H-30AB

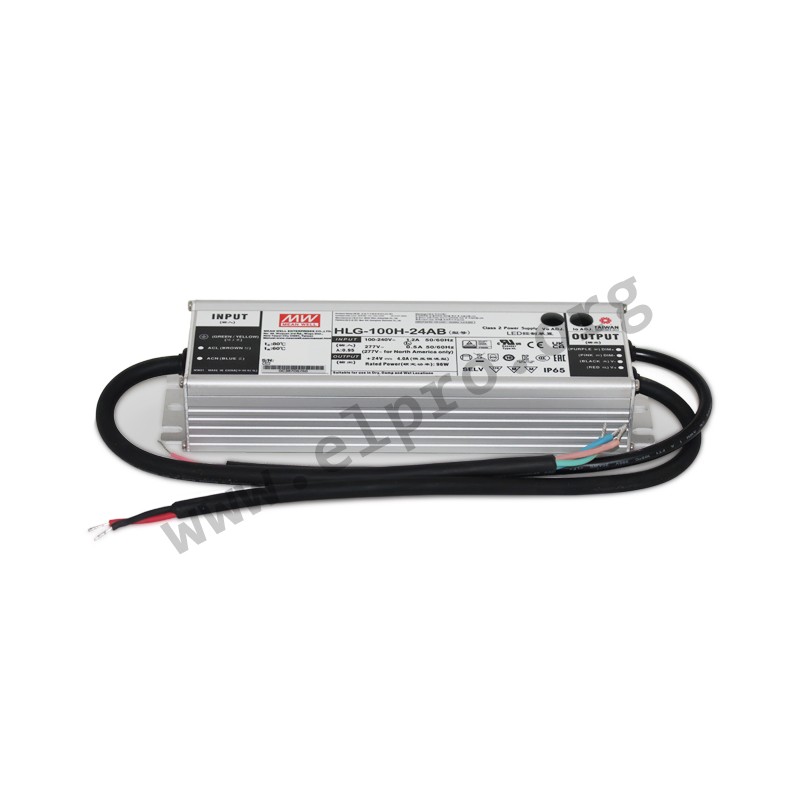

Mean Well LED driver series HLG-100H

LED drivers in a metal case (IP65) with a constant current, a wide input range and 96W. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in potentiometer for adjusting the output current as well as a built-in active PFC function. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547, are suitable for LED lighting applications and have a 3 in 1 dimming function (1 to 10V DC, 10V PWM). We offer the following types of this Mean Well series: HLG-100H-20AB, HLG-100H-24AB, HLG-100H-30AB, HLG-100H-36AB, HLG-100H-42AB, HLG-100H-48AB and HLG-100H-54AB.

  • single output
  • output: 95,4 to 96W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • overcurrent protection: 95 to 106%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 1120g

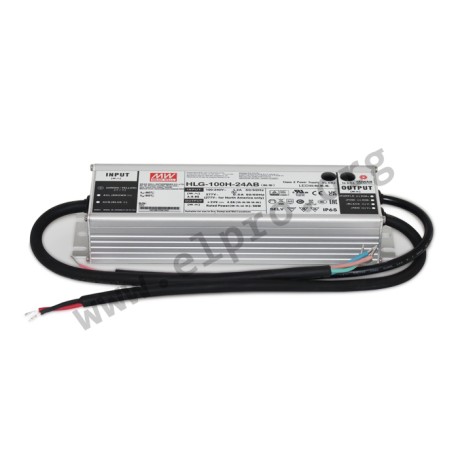

HLG-100H-30AB, Mean Well LED drivers, 100W, IP65, CV and CC mixed mode, adjustable, dimmable, HLG-100H series

HLG-100H-30AB

244586 HLG-100H-30AB HLG-100H-30AB 4711287481807 Mean Well LED driver series HLG-100H. LED drivers in a metal case (IP65) with a constant current, a wide input range and 96W. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in potentiometer for adjusting the output current as well as a built-in active PFC function. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547, are suitable for LED lighting applications and have a 3 in 1 dimming function (1 to 10V DC, 10V PWM). We offer the following types of this Mean Well series: HLG-100H-20AB, HLG-100H-24AB, HLG-100H-30AB, HLG-100H-36AB, HLG-100H-42AB, HLG-100H-48AB and HLG-100H-54AB. single output output: 95,4 to 96W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A overcurrent protection: 95 to 106% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 1120g

Specifications

manufacturer
Manufacturer's name HLG-100H-30AB
GTIN 4711287481807
Output voltage [V] 30
Efficiency [%] 93
Output current [A] 3,2
Output voltage tolerance: [%] 1
Output power [W] 96
Ripple [mVp-p] 200
Data Sheet

Unit price

52,39 €

Stock: 0
Further delivery:
CW 34/2024
