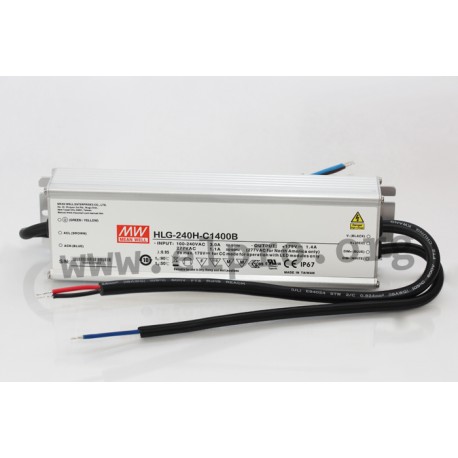

HLG-240H-C1400B

Mean Well LED driver series HLG-240H-C

LED drivers in a metal housing (IP67) with a constant current, a 240W and a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer). These devices comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C as well as EN55015 and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-240H-C700B, HLG-240H-C1050B, HLG-240H-C1400B, HLG-240H-C1750B and HLG-240H-C2100B.

  • single output
  • output: 249,9 to 250,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244,2x68x38,8mm
  • weight: 1300g
HLG-240H-C1400B

HLG-240H-C1400B

108622 HLG-240H-C1400B HLG-240H-C1400B 4711287452425 Mean Well LED driver series HLG-240H-C. LED drivers in a metal housing (IP67) with a constant current, a 240W and a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer). These devices comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C as well as EN55015 and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-240H-C700B, HLG-240H-C1050B, HLG-240H-C1400B, HLG-240H-C1750B and HLG-240H-C2100B. single output output: 249,9 to 250,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244,2x68x38,8mm weight: 1300g

Specifications

manufacturer
Manufacturer's name HLG-240H-C1400B
GTIN 4711287452425
Output voltage [V] 89...179
Output current tolerance [%] 5
Efficiency [%] 994
Output power [W] 250,6
Output current [mA] 1400
Data Sheet

Unit price

55,59 €

Volume discounts

Quantity Unit price
50 + 54,19 €

Stock: 308
Further delivery:
CW 34/2024
