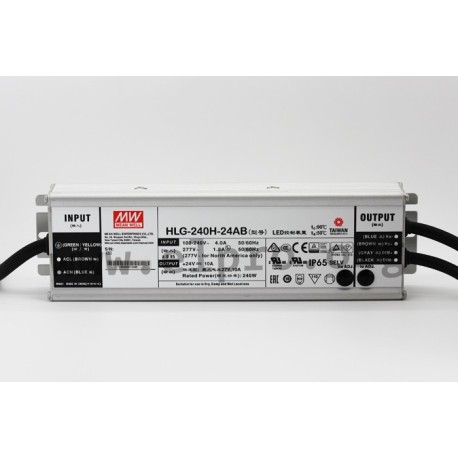

HLG-240H-30AB

Mean Well LED driver series HLG-240H

LED drivers in a metal case (IP65) with a built-in active PFC function as well as a constant voltage. These SELV compliant devices are protected against overtemperature, overvoltage, overcurrent, short-circuit and overload through constant current limiting (auto recovery) and are suitable for LED lighting applications. The output voltage and current are adjustable through a built-in potentiometer and are in compliance to the EMC standards EN 55015, EN 61000-3-2 Class C, EN 61000-3-3 and EN 61547 as well to the safety standards EN 61347-1 and EN 61347-2-13. Furthermore, they have a 3 in 1 dimming function (1 to 10V DC, potentiometer, PWM) and are in compliance to the EMC standards EN 55015, EN 61000-3-2 Class C, EN 61000-3-3 and EN 61547 as well to the safety standards EN 61347-1 and EN 61347-2-13. We offer the following types of this Mean Well series: HLG-240H-12AB, HLG-240H-15AB, HLG-240H-20AB, HLG-240H-24AB, HLG-240H-30AB, HLG-240H-36AB, HLG-240H-42AB, HLG-240H-48AB and HLG-240H-54AB.

  • single output
  • power: 192 to 241,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 1300g
HLG-240H-30AB, Mean Well LED drivers, 240W, IP65, CV and CC mixed mode, dimmable, adjustable, HLG-240H series

HLG-240H-30AB

244664 HLG-240H-30AB HLG-240H-30AB 4711287450582 Mean Well LED driver series HLG-240H. LED drivers in a metal case (IP65) with a built-in active PFC function as well as a constant voltage. These SELV compliant devices are protected against overtemperature, overvoltage, overcurrent, short-circuit and overload through constant current limiting (auto recovery) and are suitable for LED lighting applications. The output voltage and current are adjustable through a built-in potentiometer and are in compliance to the EMC standards EN 55015, EN 61000-3-2 Class C, EN 61000-3-3 and EN 61547 as well to the safety standards EN 61347-1 and EN 61347-2-13. Furthermore, they have a 3 in 1 dimming function (1 to 10V DC, potentiometer, PWM) and are in compliance to the EMC standards EN 55015, EN 61000-3-2 Class C, EN 61000-3-3 and EN 61547 as well to the safety standards EN 61347-1 and EN 61347-2-13. We offer the following types of this Mean Well series: HLG-240H-12AB, HLG-240H-15AB, HLG-240H-20AB, HLG-240H-24AB, HLG-240H-30AB, HLG-240H-36AB, HLG-240H-42AB, HLG-240H-48AB and HLG-240H-54AB. single output power: 192 to 241,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 1300g

Specifications

manufacturer
Manufacturer's name HLG-240H-30AB
GTIN 4711287450582
Output voltage [V] 30
Efficiency [%] 92,5
Output current [A] 8
Output voltage tolerance: [%] 1
Output power [W] 240
Ripple [mVp-p] 200
Data Sheet

Unit price

72,29 €

Stock: 0
Further delivery:
CW 33/2024
