HLG-320H-C3500A

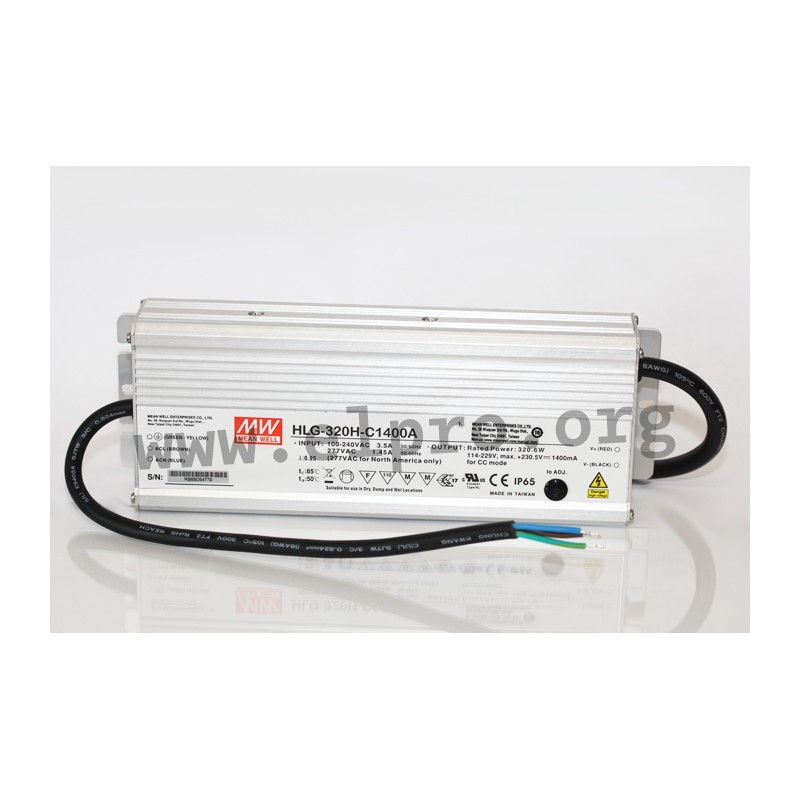

Mean Well LED driver series HLG-320H-C

LED drivers in a metal housing (IP65) with a constant current, 320W and a built-in potentiometer for adjusting the output current. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-C700A, HLG-320H-C1050A, HLG-320H-C1400A, HLG-320H-C1750A, HLG-320H-C2100A, HLG-320H-C2800A and HLG-320H-C3500A.

  • single output
  • output: 299,6 to 320,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 252x90x43,8mm
  • weight: 1880g

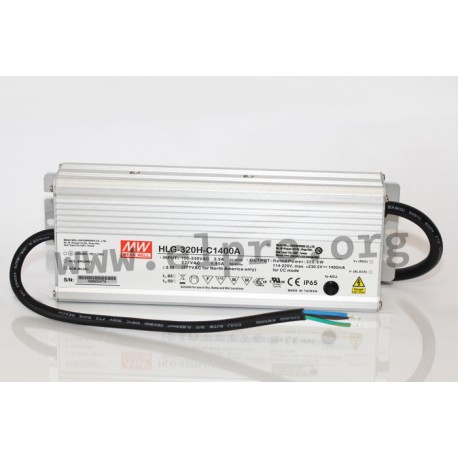

HLG-320H-C_A series

HLG-320H-C3500A

108639 HLG-320H-C3500A HLG-320H-C3500A 4711287452814 Mean Well LED driver series HLG-320H-C. LED drivers in a metal housing (IP65) with a constant current, 320W and a built-in potentiometer for adjusting the output current. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-C700A, HLG-320H-C1050A, HLG-320H-C1400A, HLG-320H-C1750A, HLG-320H-C2100A, HLG-320H-C2800A and HLG-320H-C3500A. single output output: 299,6 to 320,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 252x90x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-C3500A
GTIN 4711287452814
Output voltage [V] 46...91
Output current tolerance [%] 5
Output current [mA] 3500
Efficiency [%] 94
Output power [W] 318,5
Data Sheet

Unit price

78,79 €

Volume discounts

Quantity Unit price
50 + 76,19 €

Stock: 18
Further delivery:
CW 33/2024
