HLG-480H-C1400B

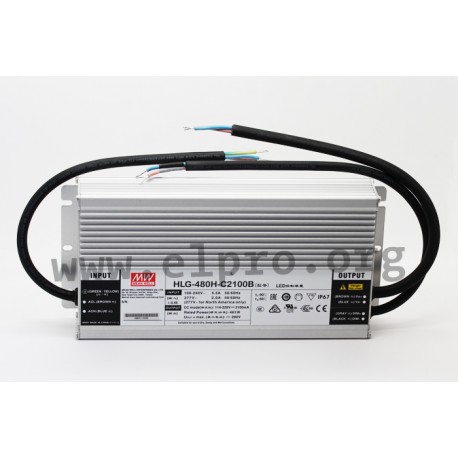

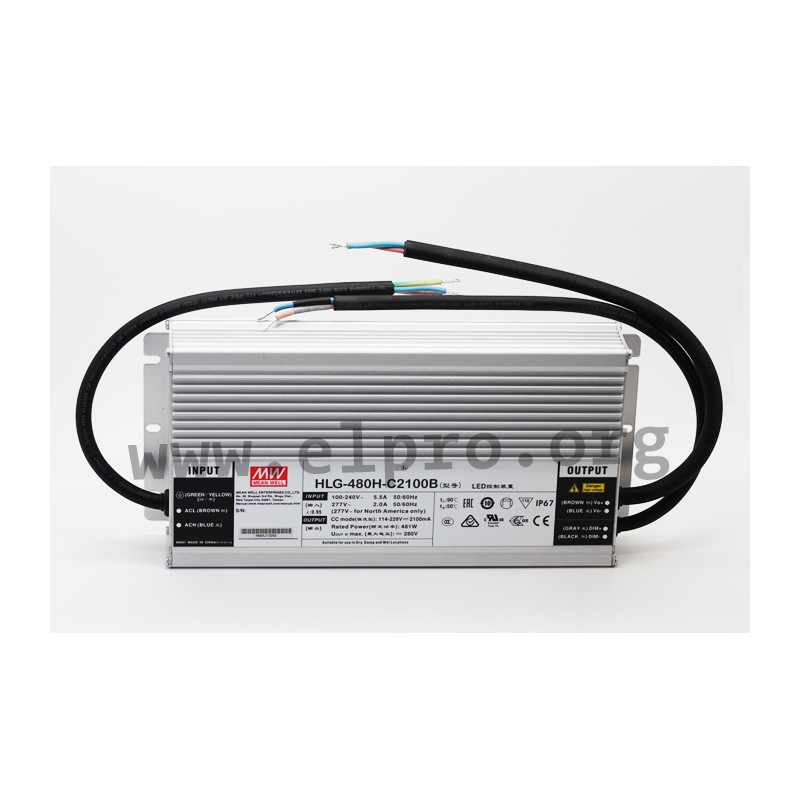

Mean Well LED driver series HLG-480H-C

LED drivers in a metal housing (IP67) with a long service life (>62.000h), a 3 in 1 dimming function (0 to 10V DC, 10V PWM, resistor) and a universal input. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN62384, EN61347-1, EN61000-3-2 class C as well as EN55015. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-480H-C1400B, HLG-480H-C1750B, HLG-480H-C2100B, HLG-480H-C2800B and HLG-480H-C3500B.

  • single output
  • output: 479 to 481W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +95°C
  • weight: 2800g
HLG-480H-C1400B, Mean Well LED switching power supplies, 480W, IP67, constant current, dimmable, HLG-480H-C series

HLG-480H-C1400B

119237 HLG-480H-C1400B HLG-480H-C1400B 4711287452937 Mean Well LED driver series HLG-480H-C. LED drivers in a metal housing (IP67) with a long service life (>62.000h), a 3 in 1 dimming function (0 to 10V DC, 10V PWM, resistor) and a universal input. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN62384, EN61347-1, EN61000-3-2 class C as well as EN55015. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-480H-C1400B, HLG-480H-C1750B, HLG-480H-C2100B, HLG-480H-C2800B and HLG-480H-C3500B. single output output: 479 to 481W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +95°C weight: 2800g

Specifications

manufacturer
Manufacturer's name HLG-480H-C1400B
GTIN 4711287452937
Output current tolerance [%] 5
Output current [mA] 1400
Efficiency [%] 95
Output power [W] 480
Output voltage range [V] 171...343
Data Sheet

Unit price

126,09 €

Volume discounts

Quantity Unit price
50 + 121,89 €

Stock: 33
Further delivery:
CW 33/2024
