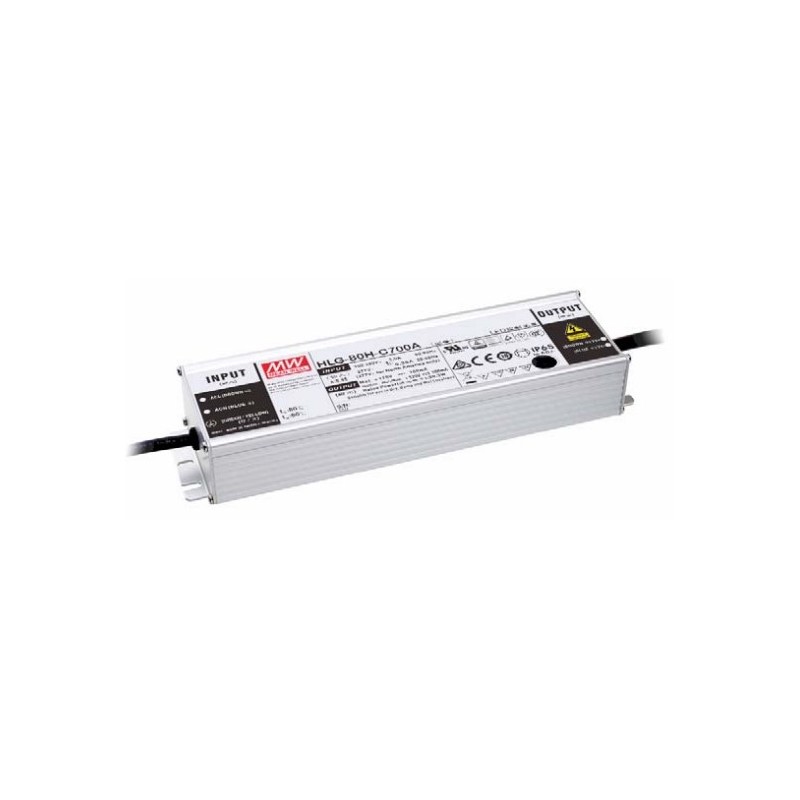

HLG-80H-C700B

Mean Well LED driver series HLG-80H-C

LED drivers in an aluminium housing (IP67) with a universal input, a constant current (CC), 90W and a high voltage output. These devices are protected against overload (auto recovery), overvoltage as well as short circuit, are suitable for LED lighting applications and have a 3 in 1 dimming function (1 to 10VDC, 10V PWM). They comply with EN61000-3-2 class C, EN55015, EN61347-1 and EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-C350B and HLG-80H-C700B.

  • single output
  • output: 89,95 to 90,3W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C
  • weight: 840g

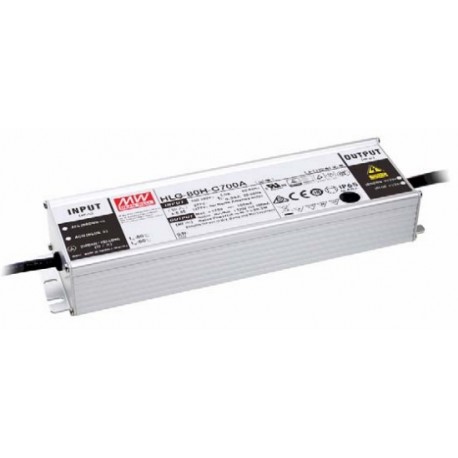

HLG-80H-C700B, Mean Well LED switching power supplies, 90W, IP67, constant current, dimmable, HLG-80H-C series

HLG-80H-C700B

135873 HLG-80H-C700B HLG-80H-C700B 4711287452081 Mean Well LED driver series HLG-80H-C. LED drivers in an aluminium housing (IP67) with a universal input, a constant current (CC), 90W and a high voltage output. These devices are protected against overload (auto recovery), overvoltage as well as short circuit, are suitable for LED lighting applications and have a 3 in 1 dimming function (1 to 10VDC, 10V PWM). They comply with EN61000-3-2 class C, EN55015, EN61347-1 and EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-C350B and HLG-80H-C700B. single output output: 89,95 to 90,3W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C weight: 840g

Specifications

manufacturer
Manufacturer's name HLG-80H-C700B
GTIN 4711287452081
Efficiency [%] 91,5
Output power [W] 90,3
Output current [mA] 700
Ripple & noise [%] 5
Output voltage range [V] 84...129
Data Sheet

Unit price

37,59 €

Volume discounts

Quantity Unit price
50 + 36,29 €

Stock: 16
Further delivery:
CW 33/2024
