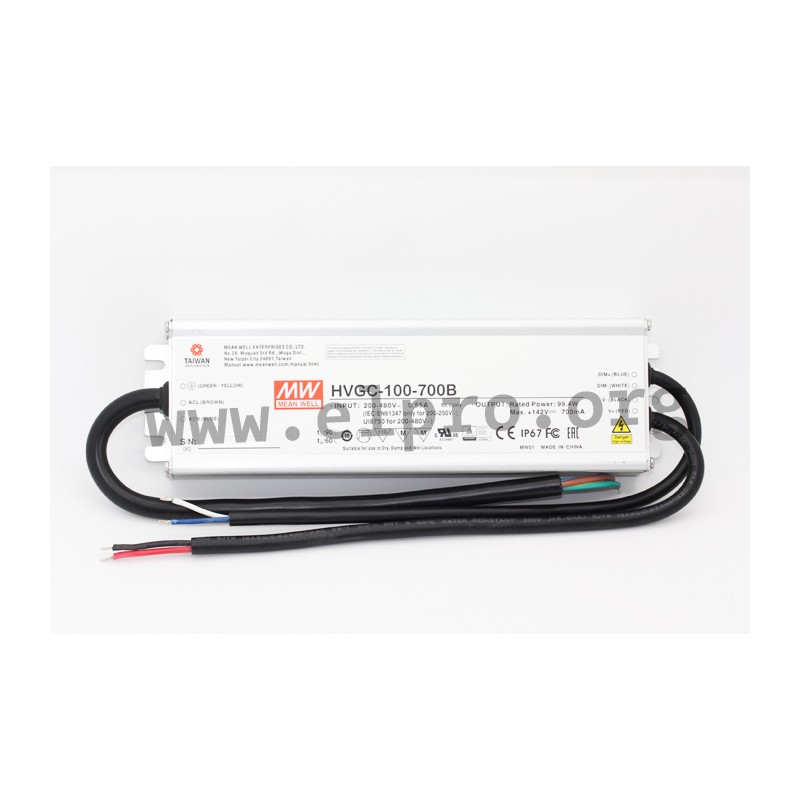

HVGC-100-700B

Mean Well LED driver series HVGC-100

LED drivers in a metal housing (IP67) with a constant current, a wide input range and 100W. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-100-350B and HVGC-100-700B.

  • single output
  • output: 99,4 to 99,75W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 25A/480V AC
  • efficiency: 91%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temerpature: -40 to +90°C
  • weight: 1180g

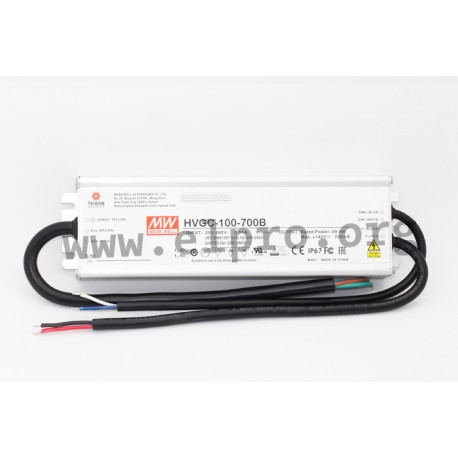

HVGC-100-700B, Mean Well LED drivers, 100W, IP67, constant current, dimmable, HVGC-100 series

HVGC-100-700B

123086 HVGC-100-700B HVGC-100-700B 4711287454498 Mean Well LED driver series HVGC-100. LED drivers in a metal housing (IP67) with a constant current, a wide input range and 100W. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-100-350B and HVGC-100-700B. single output output: 99,4 to 99,75W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 25A/480V AC efficiency: 91% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temerpature: -40 to +90°C weight: 1180g

Specifications

manufacturer
Manufacturer's name HVGC-100-700B
GTIN 4711287454498
Output power [W] 99,4
Output voltage adjustment [V] 15...142
Output voltage range [V] 15...142
Output current adjustment [A] 0,7
Data Sheet

Unit price

64,19 €

Volume discounts

Quantity Unit price
50 + 61,99 €

Stock: 18
Further delivery:
CW 33/2024
