HVGC-320-3500B

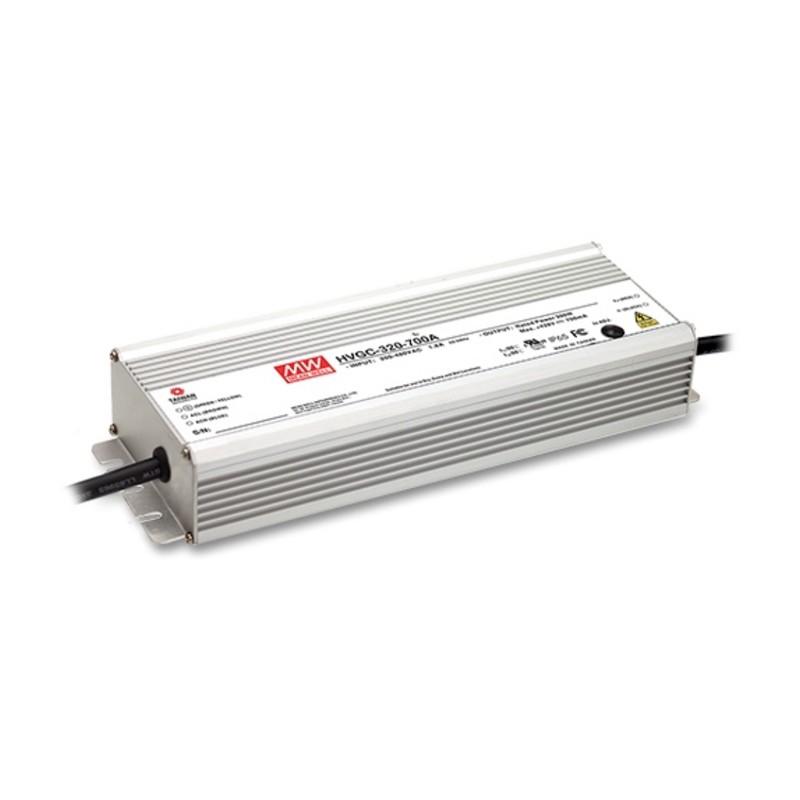

Mean Well LED driver series HVGC-320

LED drivers in a metal housing (IP67) with 320W, a constant current and a 3 in 1 dimming function. These devices have a built-in active PFC function and comply with EN61347-2-13, EN61347-1, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. We offer the following types of this Mean Well series: HVGC-320-700B, HVGC-320-1050B, HVGC-320-1400B, HVGC-320-1750B, HVGC-320-2100B, HVGC-320-2800B and HVGC-320-3500B.

  • single output
  • output: 300 to 320W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 50A (480V)
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 262x90x43,8mm
  • weight: 2000g

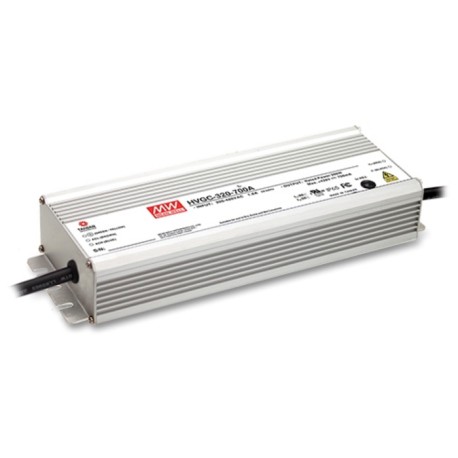

HVGC-320-3500B, Mean Well LED drivers, 320W, IP67, constant current, dimmable, high voltage, HVGC-320 series

HVGC-320-3500B

244825 HVGC-320-3500B HVGC-320-3500B 4711287454986 Mean Well LED driver series HVGC-320. LED drivers in a metal housing (IP67) with 320W, a constant current and a 3 in 1 dimming function. These devices have a built-in active PFC function and comply with EN61347-2-13, EN61347-1, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. We offer the following types of this Mean Well series: HVGC-320-700B, HVGC-320-1050B, HVGC-320-1400B, HVGC-320-1750B, HVGC-320-2100B, HVGC-320-2800B and HVGC-320-3500B. single output output: 300 to 320W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 50A (480V) withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 262x90x43,8mm weight: 2000g

Specifications

manufacturer
Manufacturer's name HVGC-320-3500B
GTIN 4711287454986
Output voltage [V] 34,3...68,6
Efficiency [%] 93
Output current [A] 3,5
Output power [W] 320
Data Sheet

Unit price

117,99 €

Stock: 0
Further delivery:
CW 36/2024
