HVGC-480-L-ADA

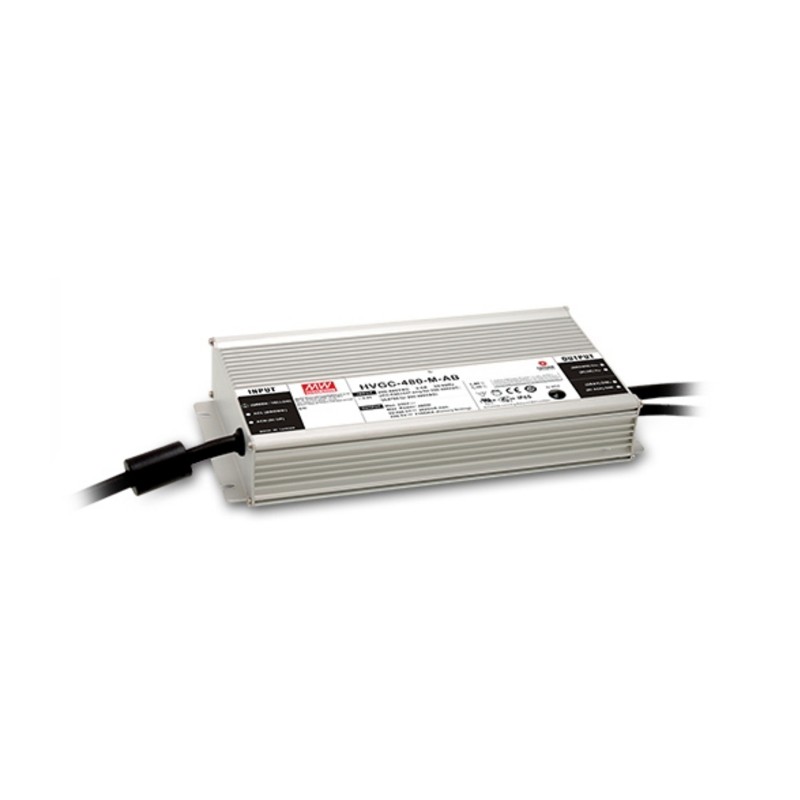

Mean Well LED driver series HVGC-480

LED drivers in a metal housing (IP65) with 480W, a constant power and a DALI interface (HVGC-480_-ADA). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HVGC-480-L, HVGC-480-H, HVGC-480-M, HVGC-480-L-ADA, HVGC-480-M-ADA and HVGC-480-H-ADA.

  • single output
  • output: 480W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 262x125x43,8mm
  • weight: 2720g

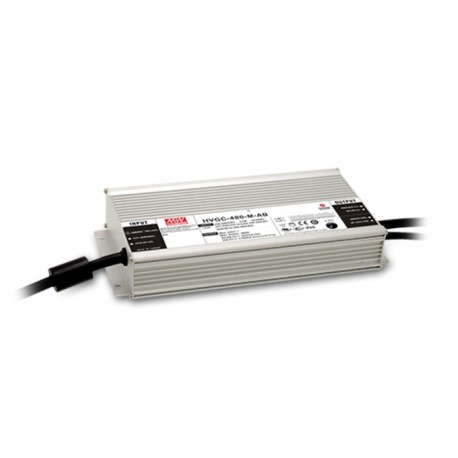

HVGC-480-L-ADA, Mean Well LED drivers, 480W, IP65, constant power, dimmable, DALI interface, HVGC-480 series

HVGC-480-L-ADA

244836 HVGC-480-L-ADA HVGC-480-L-ADA Mean Well LED driver series HVGC-480. LED drivers in a metal housing (IP65) with 480W, a constant power and a DALI interface (HVGC-480_-ADA). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HVGC-480-L, HVGC-480-H, HVGC-480-M, HVGC-480-L-ADA, HVGC-480-M-ADA and HVGC-480-H-ADA. single output output: 480W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 40A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 262x125x43,8mm weight: 2720g

Specifications

manufacturer
Manufacturer's name HVGC-480-L-ADA
Output voltage [V] 137...343
Efficiency [%] 94,5
Output power [W] 480
Ripple & noise [%] 5
Output current adjustment [mA] 700...1750
Data Sheet

Unit price

136,49 €

Stock: 0
Further delivery:
CW 12/2026

Minimum order quantity 200 units or
multiples of 200.
