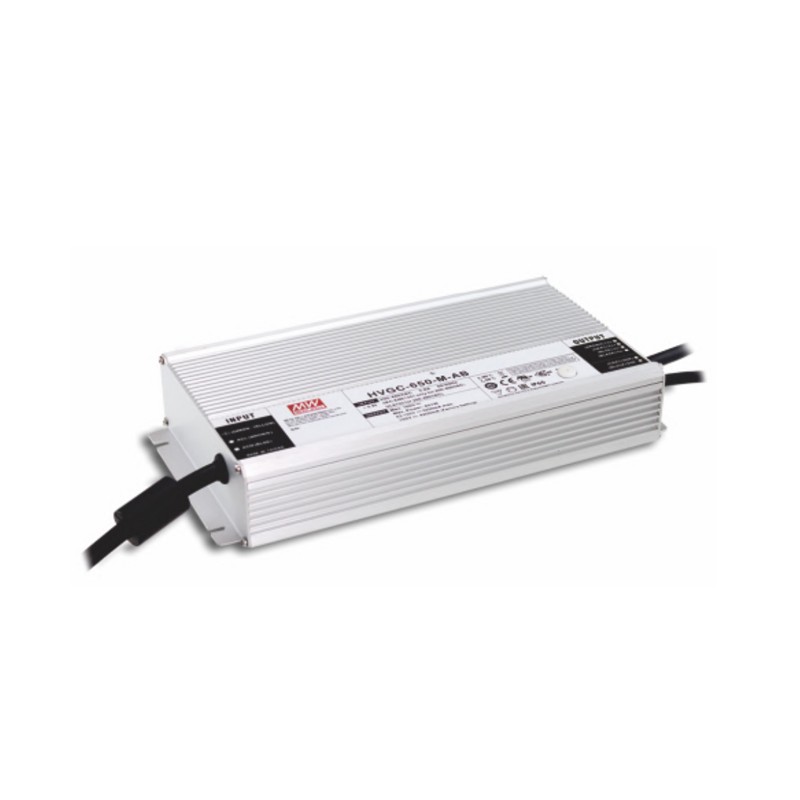

HVGC-650A-M-AB

Mean Well LED driver series HVGC-650

LED drivers in a metal housing (IP67) with 650W, a constant power, a DALI interface (HVGC-650_-DA) and an auxiliary DC output (HVGC-650A_). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with UL8750, EN61000-3-2 class C as well as EN55015. We offer the following types of this Mean Well series: HVGC-650A-L-AB, HVGC-650A-M-AB, HVGC-650A-H-AB, HVGC-650A-U-AB, HVGC-650A-L-DA, HVGC-650A-M-DA, HVGC-650A-H-DA, HVGC-650A-U-DA, HVGC-650-L-DA, HVGC-650-M-DA, HVGC-650-H-DA and HVGC-650-U-DA.

  • single output
  • output: 649,6 to 651W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 4200V AC
  • withstand voltage I/P-FG: 2100V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 280x144x48,5mm
  • weight: 3900g

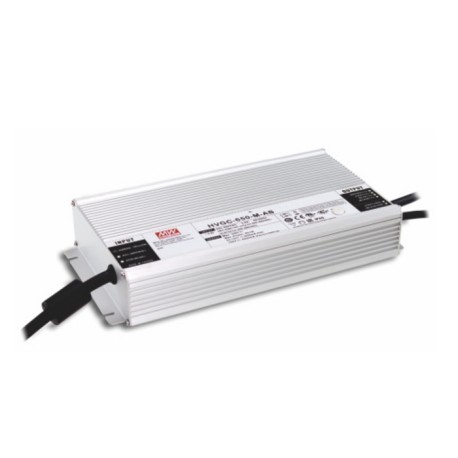

HVGC-650A-M-AB, Mean Well LED drivers, 650W, IP67, constant power, dimmable, auxiliary output, DALI interface, HVGC-650 series

HVGC-650A-M-AB

244850 HVGC-650A-M-AB HVGC-650A-M-AB Mean Well LED driver series HVGC-650. LED drivers in a metal housing (IP67) with 650W, a constant power, a DALI interface (HVGC-650_-DA) and an auxiliary DC output (HVGC-650A_). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with UL8750, EN61000-3-2 class C as well as EN55015. We offer the following types of this Mean Well series: HVGC-650A-L-AB, HVGC-650A-M-AB, HVGC-650A-H-AB, HVGC-650A-U-AB, HVGC-650A-L-DA, HVGC-650A-M-DA, HVGC-650A-H-DA, HVGC-650A-U-DA, HVGC-650-L-DA, HVGC-650-M-DA, HVGC-650-H-DA and HVGC-650-U-DA. single output output: 649,6 to 651W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 40A withstand voltage I/P-O/P: 4200V AC withstand voltage I/P-FG: 2100V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 280x144x48,5mm weight: 3900g

Specifications

manufacturer
Manufacturer's name HVGC-650A-M-AB
Output voltage [V] 62...155
Efficiency [%] 95
Output power [W] 651
Ripple & noise [%] 5
Output current adjustment [mA] 2100...5250
Data Sheet

Unit price

219,39 €

Stock: 0
Further delivery:
CW 36/2024

Minimum order quantity 200 units or
multiples of 200.
