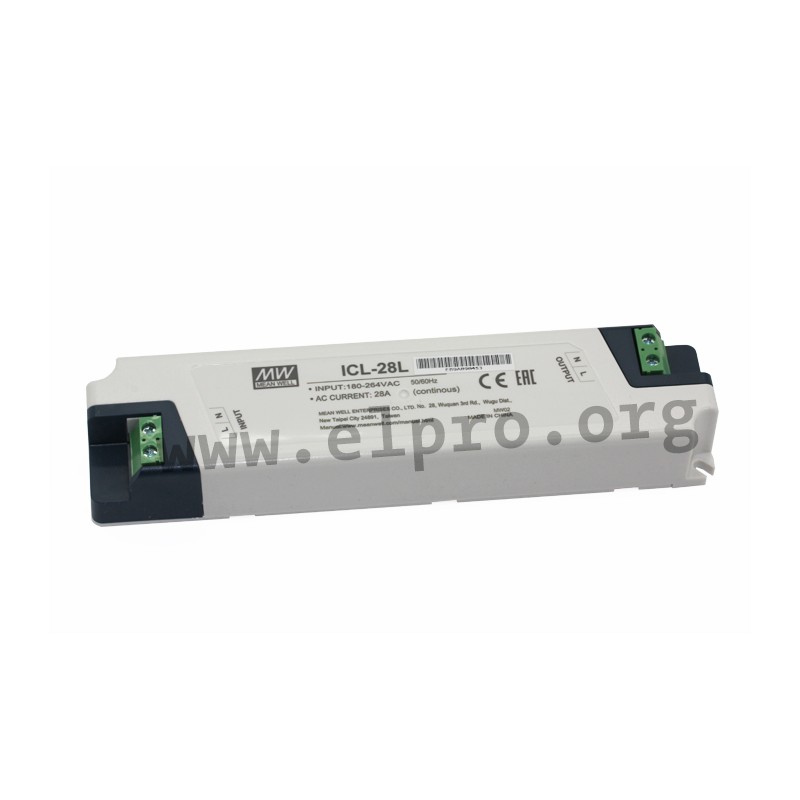

ICL-28L

Mean Well inrush current limiter series ICL-28

Peak- resp. R.M.S. current limiters for capacitive (up to 6000µF) loads. These devices have an internal thermal protection as well as an integrated bypass relay and are suitable for DIN Rail mounting (ICL-28R) or installation in terminal devices (ICL-28L). They allow the installation of several power supplies on the same AC line and comply with EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: ICL-28R and ICL-28L.

  • AC input range: 180 to 264V AC
  • line frequency: 47 to 63Hz
  • continous current: 28A
  • operating temperature: -30 to +70°C

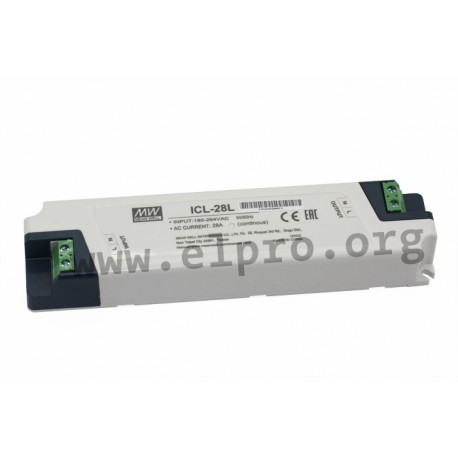

ICL-28L, Mean Well inrush current limiters, ICL-28 series

ICL-28L

123895 ICL-28L ICL-28L 4711287421902 Mean Well inrush current limiter series ICL-28. Peak- resp. R.M.S. current limiters for capacitive (up to 6000µF) loads. These devices have an internal thermal protection as well as an integrated bypass relay and are suitable for DIN Rail mounting (ICL-28R) or installation in terminal devices (ICL-28L). They allow the installation of several power supplies on the same AC line and comply with EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: ICL-28R and ICL-28L. AC input range: 180 to 264V AC line frequency: 47 to 63Hz continous current: 28A operating temperature: -30 to +70°C

Specifications

manufacturer
Manufacturer's name ICL-28L
GTIN 4711287421902
R.M.S. current limiting, max. [A] 48
Release time [ms] 100
Limiting time [ms] 150
Capacity [µF] 6000
Data Sheet

Unit price

33,99 €

Volume discounts

Quantity Unit price
50 + 32,79 €

Stock: 26
Further delivery:
CW 33/2024
