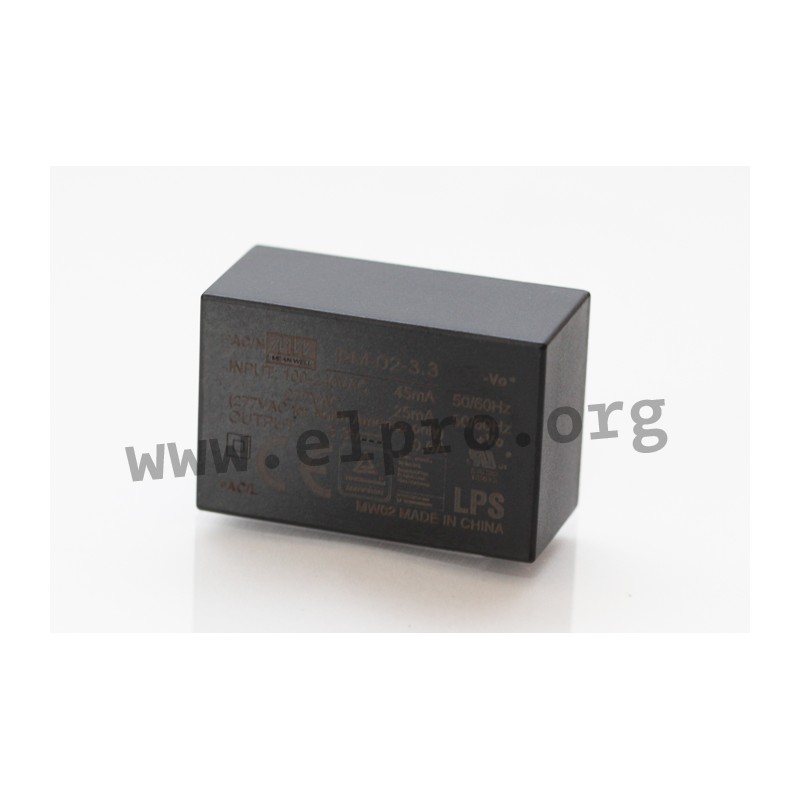

IRM-02-3.3

Mean Well power supply series IRM-02

Switching power supplies in an enclosed housing (PCB) with 2W, a universal input, insulation class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, overtemperature as well as short circuit. They have a fanless design and comply with EN55032 class B, EN61000-3-2, EN61000-3-3 as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-02-3.3, IRM-02-5, IRM-02-9, IRM-02-12, IRM-02-15 and IRM-02-24.

  • single output
  • output: 2W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • maximal input inrush current: 10A
  • no-load power: <0,075W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +85°C
  • weight: 19g

IRM-02-3.3

107541 IRM-02-3.3 IRM-02-3.3 4711287423500 Mean Well power supply series IRM-02. Switching power supplies in an enclosed housing (PCB) with 2W, a universal input, insulation class II and a low no-load power.&nbsp;These devices are suitable for PCB mounting and are protected against overload, overtemperature as well as short circuit. They have a fanless design and comply with&nbsp;EN55032 class B,&nbsp;EN61000-3-2, EN61000-3-3 as well as UL/EN62368-1. We offer the following types of this Mean Well series:&nbsp;IRM-02-3.3, IRM-02-5, IRM-02-9, IRM-02-12, IRM-02-15 and IRM-02-24. single output output: 2W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC maximal input inrush current: 10A no-load power: &lt;0,075W withstand voltage: 3000V AC operating temperature: -30 to +85&deg;C weight: 19g

Specifications

manufacturer
Manufacturer's name IRM-02-3.3
GTIN 4711287423500
Efficiency [%] 66
Output current range [A] 0...0,6
Output voltage tolerance: [%] 2,5
Output power [W] 2
Ripple [mVp-p] 150
Data Sheet

Unit price

4,19 €

Volume discounts

Quantity Unit price
50 + 3,79 €

Stock: 240
Further delivery:
CW 29/2024
